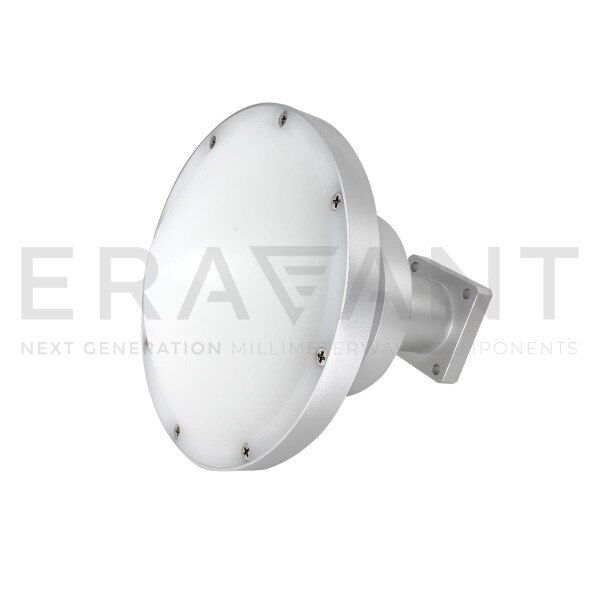

Q-Band Spot-Focusing Lens Antenna

SAQ-403085-219-S1 is a Q-band spot-focusing lens antenna that delivers a nominal 3 dB spot size of 1" at a focal length of 8.5" at the frequency of 40.1 GHz. The antenna employs a low loss lens to offer excellent aperture efficiency at 40.1 GHz. The lens antenna is equipped with a 0.219" diameter circular waveguide and UG-383/U-M flange as its input port. It supports both linear and circular polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
