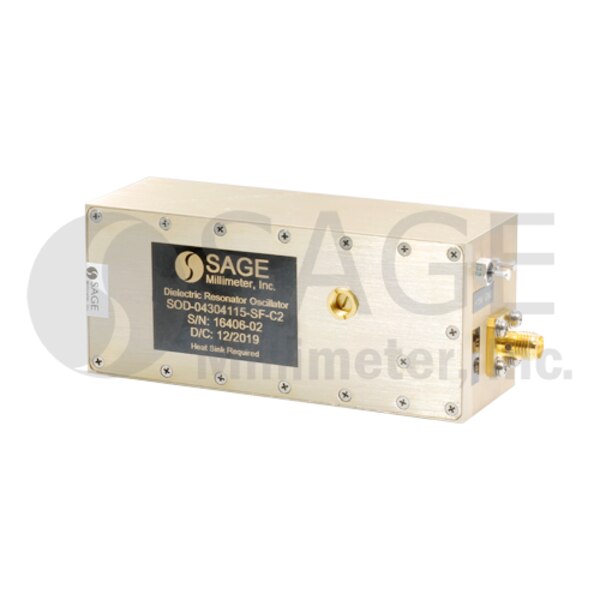

Dielectric Resonator Oscillator

4 GHz, ±20 MHz Tuning Range, +15 dBm Output Power, SMA (F)
SKU:SOD-04304115-SF-C2
Availability:3 Days ARO
SOD-04304115-SF-C2 is a mechanically tuned, dielectric resonator oscillator with a center frequency of 4 GHz and a mechanical tuning range of ±20 MHz. The oscillator delivers a nominal output power of +15 dBm with a low phase noise and harmonic emissions. The oscillator takes a +15 VDC/200 mA DC bias. The RF output is equipped with a female SMA connector.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,100.00
5 - 9$990.00
10 +$891.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency4 GHz
Output Power+15 dBm
Mechanical Tuning Range±20 MHz
Phase Noise-100 dBc/Hz @ 100 KHz Offset
Spurious-75 dBc
Harmonics-20 dBc
Bias+15 VDC/200 mA
RF PortSMA (F)
