U-Band Omnidirectional Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-0670PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

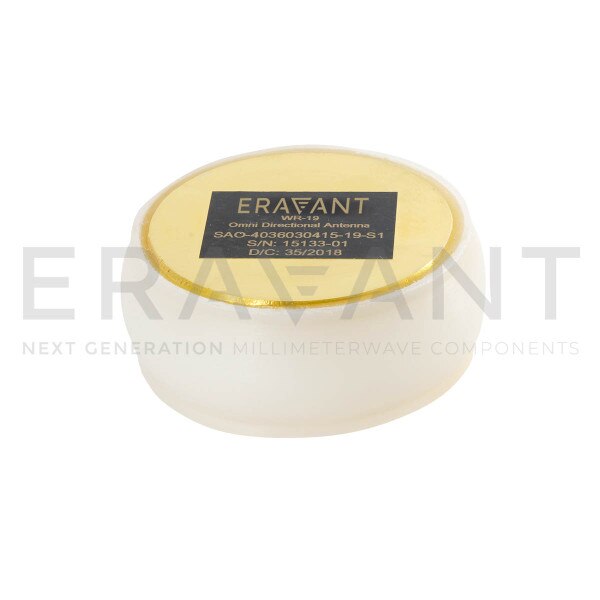

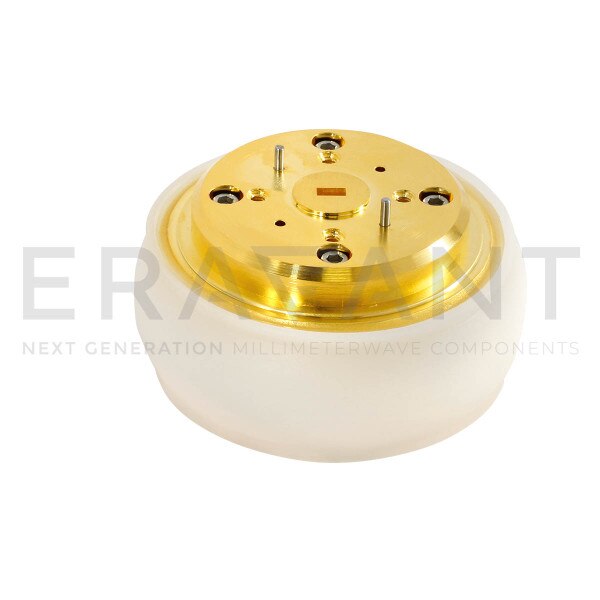

SAO-4036030415-19-S1 is a full band, WR-19 omnidirectional antenna that operates between 40 and 60 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 4 dBi typical gain and ±2 dB nominal gain flatness. The antenna features a half power beamwidth of 15 degrees in the vertical direction.
