U-Band Power Amplifier with Uni-Guide™

37 to 52 GHz, 34 dB Gain, +25 dBm P1dB, WR-19 Waveguide
SKU:SBP-3735233436-1919-H1-HR
Availability:Contact Us for Quote
Select up to 4 products to compare.
Select up to 4 products to compare.

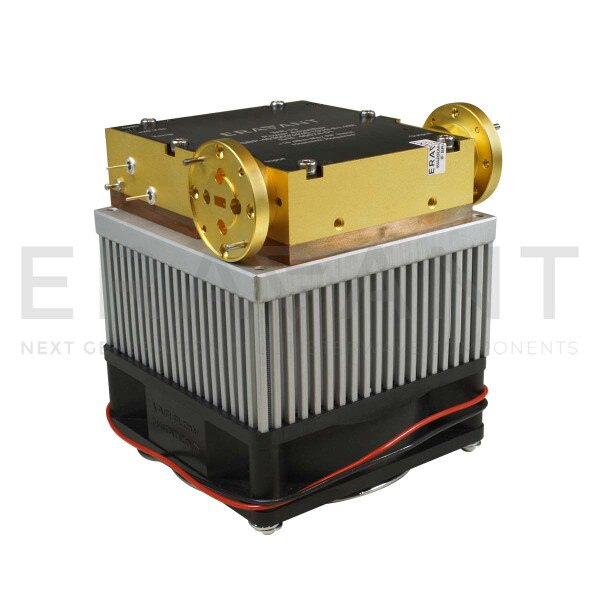

SBP-3735233436-1919-H1-HR is a U-Band, GaN power amplifier with a typical small signal gain of 34 dB and a nominal Psat of +36 dBm across the frequency range of 37 to 52 GHz. The DC power requirement for the amplifier is +20 VDC/ 4.0 A. The mechanical configuration offers an in-line structure with WR-19 waveguides and UG-383/U-M anti-cocking flanges. A heat sink is included for cooling.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency37 GHz
Maximum Frequency52 GHz
Gain34 dB
P1dB+25 dBm
Psat+36 dBm
Input Return Loss9 dB
Output Return Loss9 dB
DC Voltage+20 VDC
DC Bias4.0 A
RF Input/OutputWR-19 Uni-Guide™ Waveguide
ConfigurationHeatsink Included
