E-Band Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR12GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-WR12PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

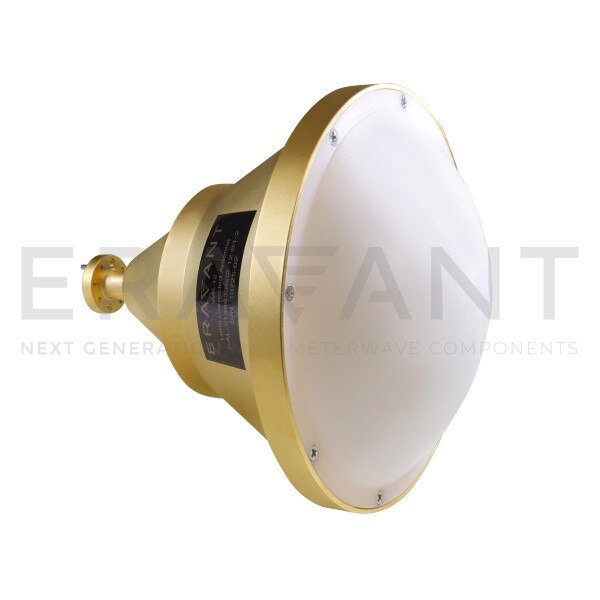

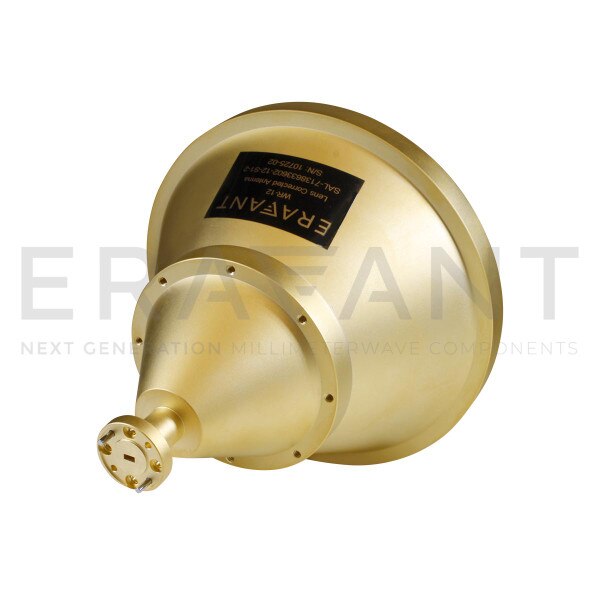

SAL-7138633602-12-S1-2 is an E-band lens corrected antenna that operates from 71 to 86 GHz. At a center frequency of 78.5 GHz, the antenna delivers 36 dBi nominal gain, 2.0 degrees typical half power beamwidth on the E-plane, and 3.0 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a standard WR-12 waveguide and UG-387/U anti-cocking flange as its input port. It supports linear polarized waveforms.
