Ka-Band Volume Production Oscillator

35 GHz, ±1.00 GHz Tuning Bandwidth, +12 dBm Output Power, WR-28 Waveguide
SKU:SOL-35312-28-G1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

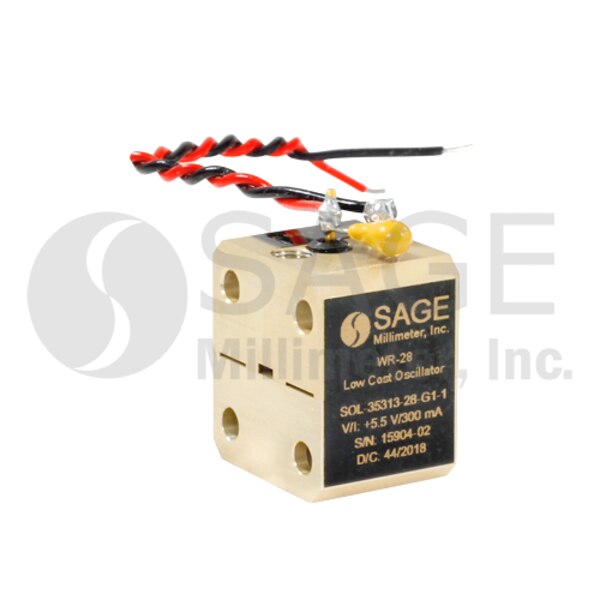

Model SOL-35312-28-G1 is a volume-production ready, Ka Band Gunn oscillator that utilizes a high performance GaAs Gunn diode and high Q cavity to achieve excellent phase noise and power stability. The oscillator is designed for fixed frequency applications, however, the frequency can be adjusted by ±1 GHz using the self-locking set screw provided.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$490.00
25 - 49$441.00
50 - 99$396.90

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency35 GHz
Output Power+12 dBm
Mechanical Tuning Range±1000 MHz
Varactor Tuning Range-
Phase Noise-95 dBc/Hz @ 100 KHz offset
Bias+5.5 VDC/250 mA
Varactor Tuning Voltage Range-
RF PortWR-28 Waveguide
