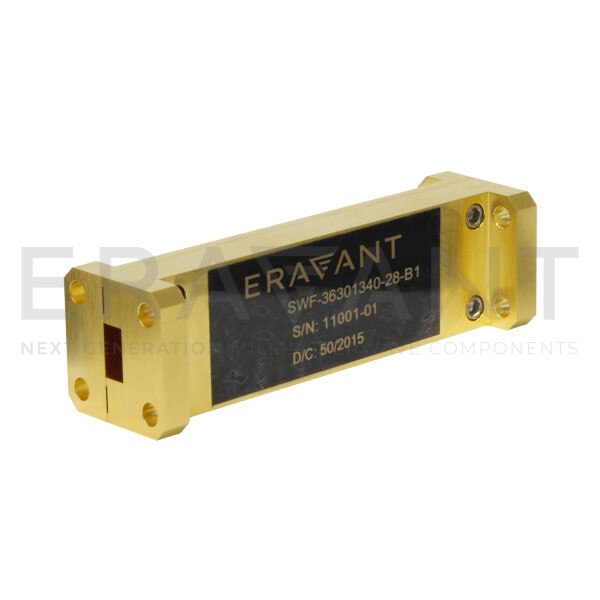

WR-28 Waveguide Bandpass Filter

35.26 to 36.26 GHz Passband, 40 dB Rejection from DC to 33.9 GHz and 38 to 45 GHz, Ka-Band
SKU:SWF-36301340-28-B1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWF-36301340-28-B1 is a Ka band, waveguide bandpass filter with a passband frequency of 35.26 to 36.26 GHz and rejection frequencies from DC to 33.9 GHz and 38 to 45 GHz. The nominal insertion loss of the bandpass filter is 1.2 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,300.00
5 - 9$1,170.00
10 +$1,053.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband Frequency35.26 GHz
Maximum Passband Frequency36.26 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side33.9 GHz
Minimum Rejection Frequency, High Side38 GHz
Maximum Rejection Frequency, High Side45 GHz
Rejection40 dB
Waveguide PortWR-28 Waveguide
