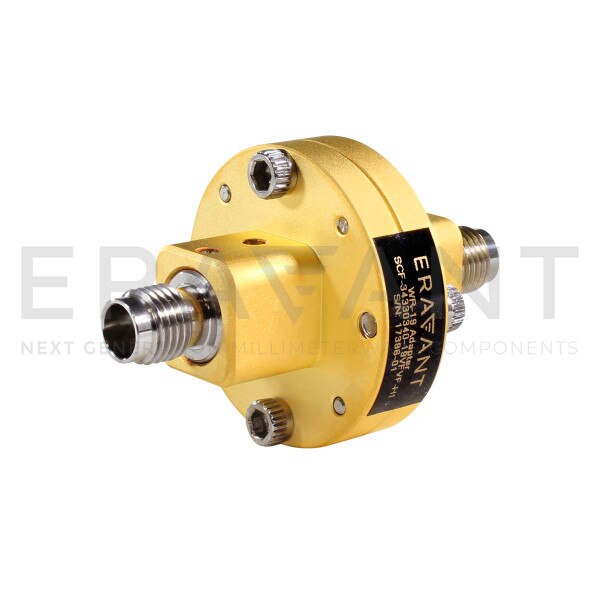

WR-19 Coaxial Highpass Filter

34 to 60 GHz, 40 dB Rejection from DC to 30 GHz
SKU:SCF-34330340-19VFVF-H1
Availability:1 Week ARO
SCF-34330340-19VFVF-H1 is a coaxial highpass filter with a passband frequency from 34 to 60 GHz. The filter rejects the frequencies from DC to 30 GHz and provides a nominal insertion loss of 1.0 dB in its passband with low ripple. Typical rejection for this model is 40 dB. The RF ports offer female 1.85 mm connectors. However, the models with other connector type, such as male connector, are also available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,250.00
5 - 9$1,125.00
10 +$1,012.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband Frequency34 GHz
Maximum Passband Frequency60 GHz
Minimum Rejection FrequencyDC
Maximum Rejection Frequency30 GHz
Rejection40 dB
Insertion Loss1.0 dB
VSWR1.3
Impedance50 Ohms
Power Handling30 W
RF Ports1.85 mm (F)
