Broadband Power Amplifier

34 to 37 GHz, 44 dB Gain, +40 dBm Psat, 2.92 mm (F)
SKU:SBP-3433734440-KFKF-EP
Availability:Contact Us for Quote

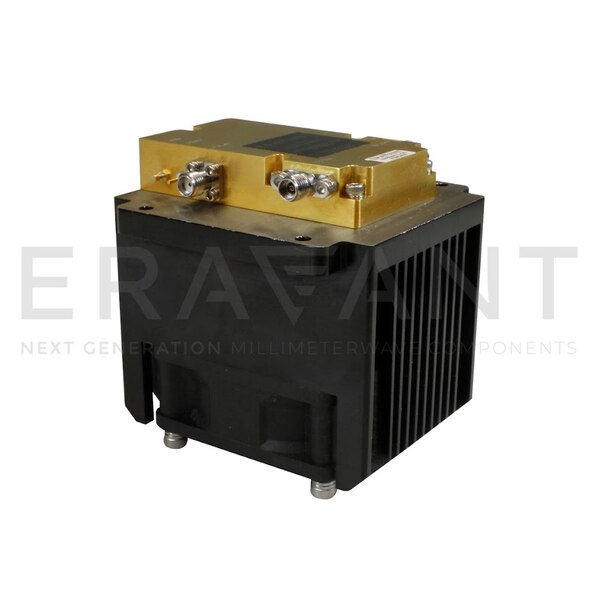

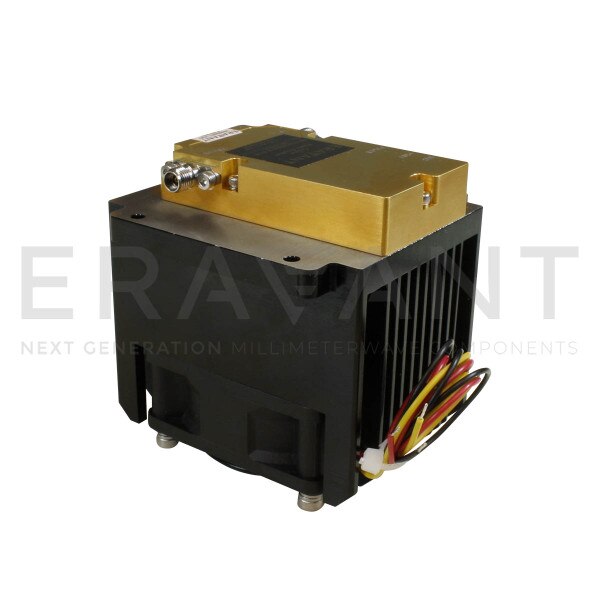

SBP-3433734440-KFKF-EP is a power amplifier with a typical small gain of 44 dB and a nominal Psat of +40 dBm across the frequency range of 34 to 37 GHz. The DC power requirement for the amplifier is +28 VDC/3.5 A. The mechanical configurations is an inline structure with K(F) connector as its input port and output port. Other port configurations, such as K(M) connectors and WR-28 waveguides for either the input or output port, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency34 GHz
Maximum Frequency37 GHz
Gain44 dB
Psat+38 dBm
Pin+5 dBm
Input Return Loss10 dB
Output Return Loss6 dB
DC Voltage+28 VDC
DC Bias3500 mA
RF Input/Output2.92 mm (F)
ConfigurationStandard
