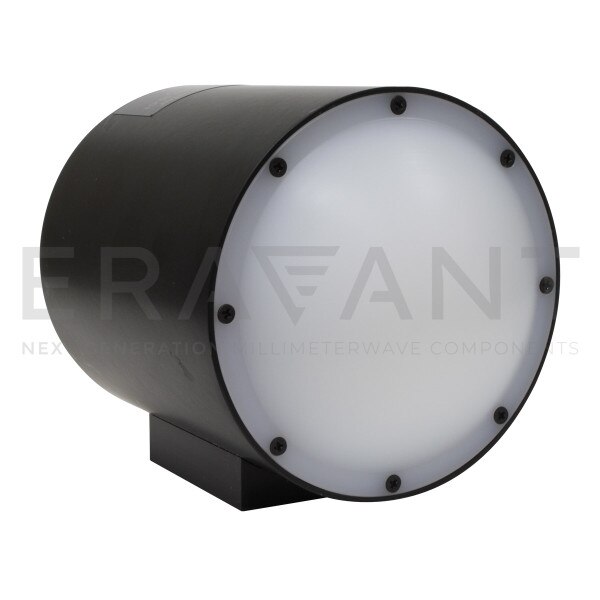

W-Band Gaussian Optics Antenna
34 dBi Gain, 88 to 100 GHz, 3" Diameter Lens, WR-10 Waveguide
Bulk Pricing
Technical Details
| Minimum Frequency | 88 GHz |
| Maximum Frequency | 100 GHz |
| Gain | 34 dBi |
| 3 dB Beamwidth | 3.0° |
| Return Loss | 21 dB |
| Polarization | Linear |
| Antenna Port | WR-10 Waveguide |
| Lens Diameter | 3" |
Frequently Asked Questions
Does Eravant offer Gaussian optical lens antennas in other bands, frequencies, or other applications even though I don't see them online?
Yes! Eravant can offer Gaussian optical lens antennas for other bands, frequencies, and other applications as needed. Please click here to contact us for a quote for any Gaussian optical lens antenna models you may need or email support@eravant.com.
Do lens corrected antennas make the beamwidth narrower?
The beamwidth of the antenna is solely aperture size dependent. It is governed by physics. Therefore, the lens or dielectric material does not affect the beamwidth. The confusion may be caused by the gain and beamwidth data published from various manufacturers for various antennas. For a lossless antenna, the beamwidth and gain product is a constant for a given aperture size. However, the aperture efficiency varies with the antenna type tremendously. For instance, the Gaussian optics lens antenna can have as high as 95% aperture efficiency, while the microstrip array antenna may only have 25% aperture efficiency. This difference dictates 6 dB gain difference for same aperture size. Please click here to read further our blog on rectangular horns, conical horns, lens corrected antennas, and Gaussian horns.
What is the price of the Eravant WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1?
Pricing for this product can be viewed when you login with an approved Eravant account. Click here to login or register. We are also happy to quote any models you may need. Please click here to contact us or email support@eravant.com.
What is the delivery/lead time of the Eravant WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1?
Eravant has thousands of models in stock ready to deliver. Please click here to contact us for a quote for the WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1 and any additional models you may need.
What is the antenna port of the Eravant WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1?
The antenna port for model number SAG-8831043403-10-S1 WR-10 Waveguide Gaussian Optics Antenna is a WR-10 Waveguide.
What are the specifications of the Eravant WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1?
The specifications for the Eravant WR-10 Waveguide Gaussian Optics Antenna SAG-8831043403-10-S1 are:
Minimum Frequency: 88 GHz
Maximum Frequency: 100 GHz
Gain: 34 dBi
3 dB Beamwidth: 3.0°
Return Loss: 21 dB
Polarization: Linear
Antenna Port: WR-10 Waveguide
Lens Diameter: 3"
