Q-Band Power Amplifier with Uni-Guide™

33 to 50 GHz, 30 dB Gain, 22 dBm Psat, 2.4 mm (F), WR-22 Waveguide
SKU:SBP-3335033020-2F22-E1
Availability:4 to 6 Weeks ARO

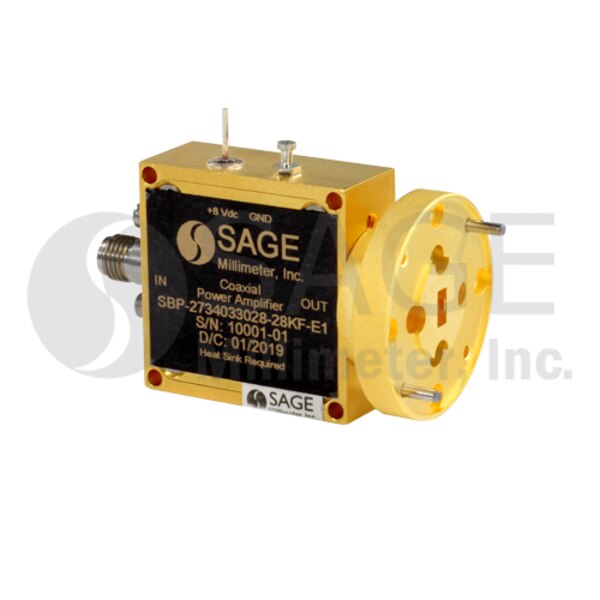

SBP-3335033020-2F22-E1 is a power amplifier with a typical small signal gain of 30 dB and a nominal P1dB of +20 dBm across the frequency range of 33 to 50 GHz. The DC power requirement for the amplifier is +8 VDC/900 mA. The mechanical configuration offers an inline structure with a 2.4 mm (F) connector as its input port and a WR-22 Uni-Guide™ waveguide as its output port. Other port configurations, such as male 2.4 mm connectors and inline WR-22 waveguides, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $3,500.00
3 - 4 $3,325.00
5 - 9 $3,158.75

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain30 dB
P1dB+20 dBm
Psat+22 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/900 A
RF Input/Output2.4 mm (F) Connector/WR-22 Uni-Guide™ Waveguide
