Q-Band Power Amplifier with Uni-Guide™

33 to 50 GHz, 30 dB Gain, +18 dBm P1dB, In-line WR-22 Waveguide
SKU:SBP-3335033018-2222-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

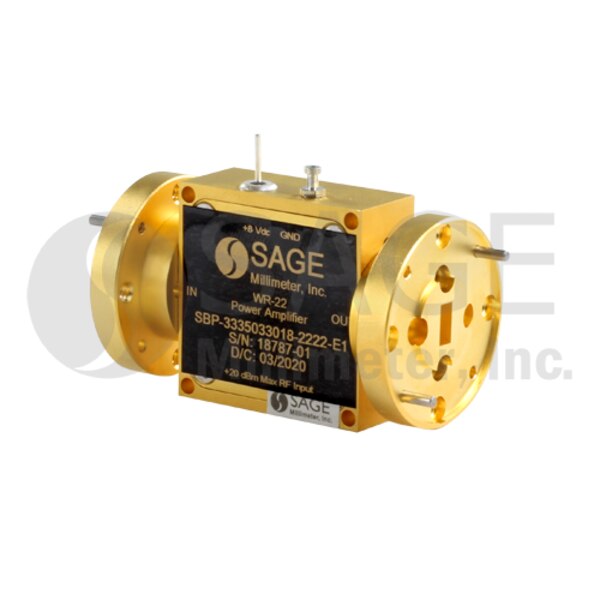

SBP-3335033018-2222-E1 is a power amplifier with a typical small signal gain of 30 dB and a nominal P1dB of +18 dBm across the frequency range of 33 to 50 GHz. The DC power requirement for the amplifier is +8 VDC/650 mA. The mechanical configuration offers a right angle structure with WR-22 Uni-Guide™ waveguides and UG-383/U flanges. Other port configurations, such as an in line structure with WR-22 waveguides or 2.4 mm connectors, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,450.00
3 - 4 $3,277.50
5 - 9 $3,113.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain30 dB
P1dB+18 dBm
Psat+20 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/650 mA
RF Input/OutputWR-22 Uni-Guide™ Waveguide
