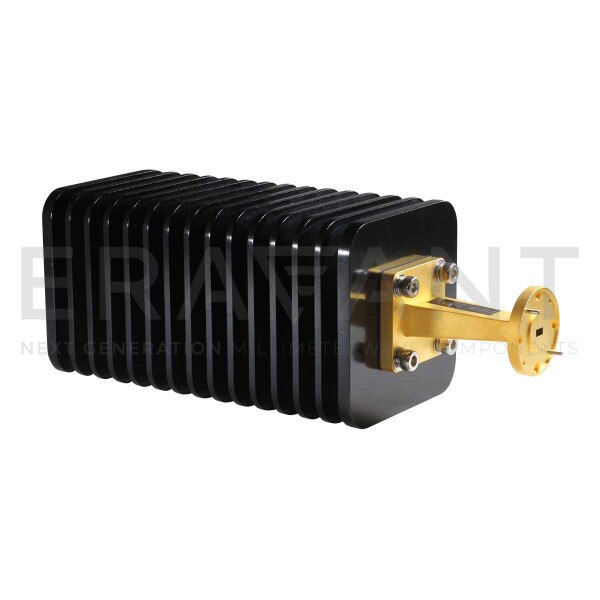

Q-Band Fixed Termination Load

33 to 50 GHz, 250 W Power Handling, WR-22 Waveguide
SKU:SWL-2254-S8
Availability:6 to 8 Weeks ARO
SWL-2254-S8 is a high power, Q-Band termination load that covers the frequency range of 33 to 50 GHz. The termination load exhibits a typical return loss of 22 dB and 500 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,670.00
5 - 9 $1,100.00
10 - 24 $990.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Power Handling, Watts250 W
Power Handling, dBm54 dBm
Return Loss22 dB
Load TypeFixed
Waveguide PortWR-22 Waveguide
