X4 Active Frequency Multiplier

33 to 50 GHz, +20 dBm Output Power, WR-22 Waveguide, Q-Band
SKU:SFA-224SF-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

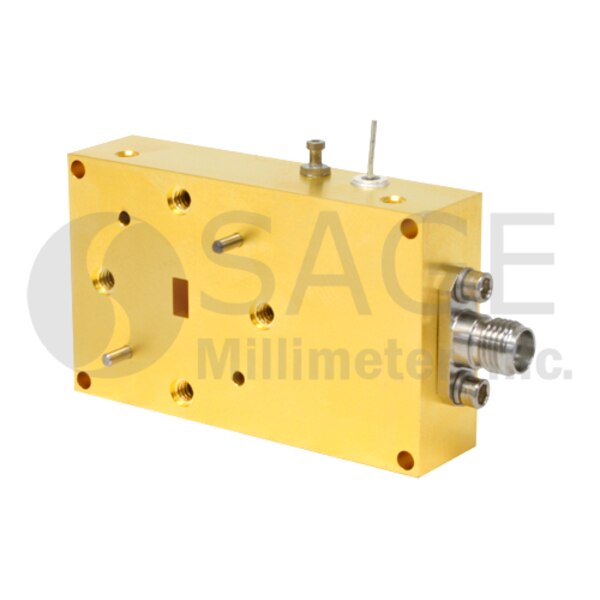

SFA-224SF-S1 is an active X4 frequency multiplier. The multiplier has an input frequency of 8.25 to 12.50 GHz with a typical input power of +5 dBm and an output frequency of 33 to 50 GHz with a typical output power of +20 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/600 mA. The input port configuration is a SMA connector and the output is a WR-22 waveguide with a UG-383/U flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,250.00
3 - 4 $4,037.50
5 - 9 $3,835.63

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency33 GHz
Maximum Output Frequency50 GHz
Output Power+20 dBm
Minimum Input Frequency8.25 GHz
Maximum Input Frequency12.50 GHz
Input Power+5 dBm
DC Bias+8 VDC/600 mA
Output PortWR-22 WG
Input PortSMA (F)
