Q-Band Waveguide Short

33 to 50 GHz, 20:1 VSWR, WR-22 Waveguide, Tunable
SKU:SWS-22-T1
Availability:1 Week ARO

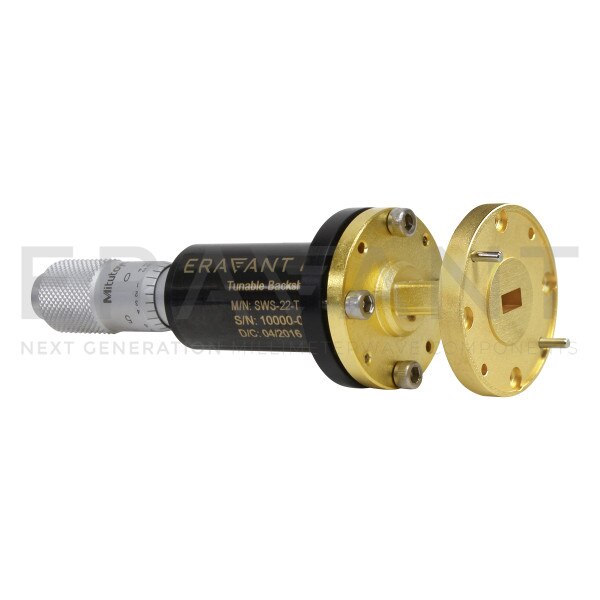

SWS-22-T1 is a Q band, tunable waveguide short that covers the frequency range of 33 to 50 GHz. The tunable short is constructed with a linear bearing and high precision Mitutoyo micrometer to guarantee smooth, long term repeatable mechanical movements. The tunable short is an ideal instrument for applications where phase variation is required. The tunable short offers a 20:1 typical VSWR.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$820.00
10 - 24$738.00
25 +$664.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
VSWR20
Waveguide SizeWR-22 Waveguide
Waveguide FlangeUG-383/U
Waveguide Short TypeTunable
