Q-Band Positive Amplitude Detector

33 to 50 GHz, 1200 mV/mW Sensitivity, WR-22 Waveguide
SKU:SFD-333503-22SF-P1
Availability:Contact Us for Quote

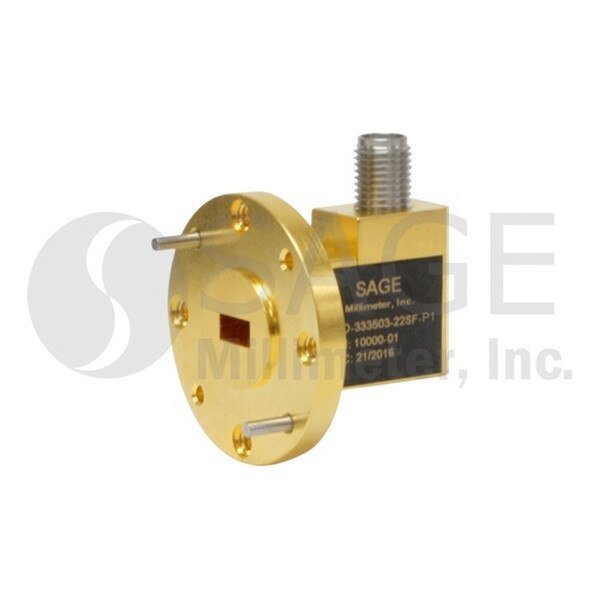

SFD-333503-22SF-P1 is a Q Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Sensitivity1200 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityPositive
RF PortWR-22 Waveguide
DC PortSMA (F)
