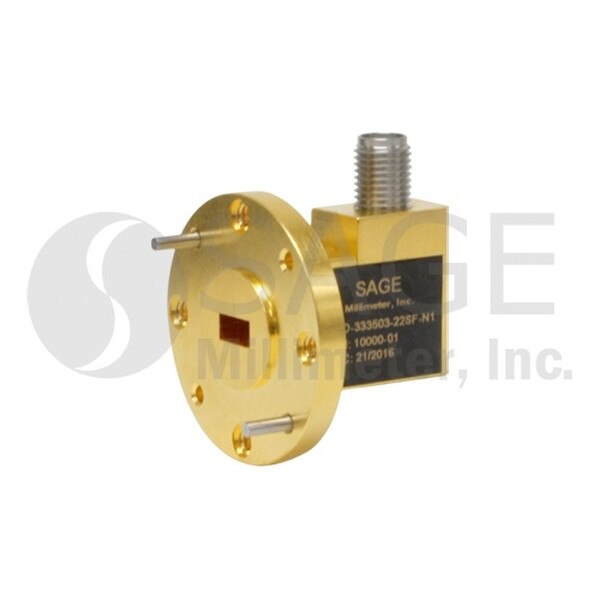

Q-Band Negative Amplitude Detector

33 to 50 GHz, 1200 mV/mW Sensitivity, WR-22 Waveguide
SKU:SFD-333503-22SF-N1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFD-333503-22SF-N1 is a Q Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,300.00
5 - 9 $1,170.00
10 - 24 $1,053.00

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Sensitivity1200 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityNegative
RF PortWR-22 Waveguide
DC PortSMA (F)
