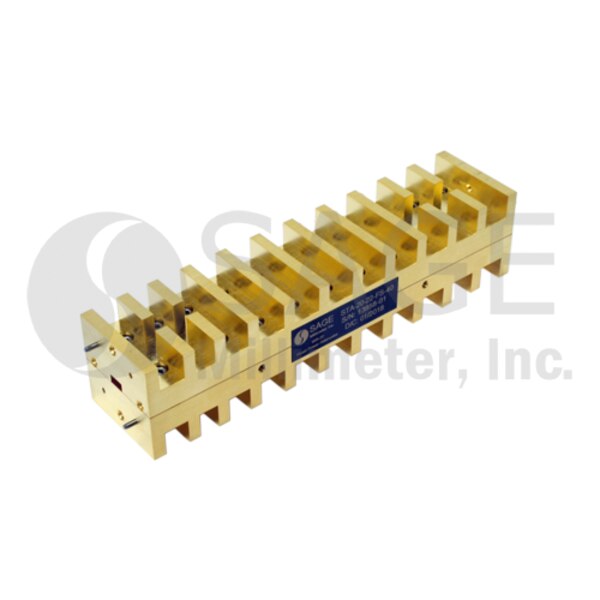

Q-Band Fixed Attenuator

33 to 50 GHz, 10 dB, 10 Watt Power Handling, WR-22 Waveguide
SKU:STA-10-22-FS-40
Availability:1 Week ARO
STA-10-22-FS-40 is a 10 watt fixed attenuator that is used in millimeterwave systems and operates from 33 to 50 GHz. The attenuator has a fixed attenuation value of 10 dB at center frequency. While the attenuator is designed and fabricated for full waveguide band applications, the attenuation value of this model does show a minor slope within the band due to its distinct mechanical configuration. Various attenuation values are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,200.00
5 - 9$1,080.00
10 +$972.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Attenuation10 dB @ 41.5 GHz
VSWR1.5
Power Handling10 W
RF PortWR-22 Waveguide
Attenuator TypeFixed
