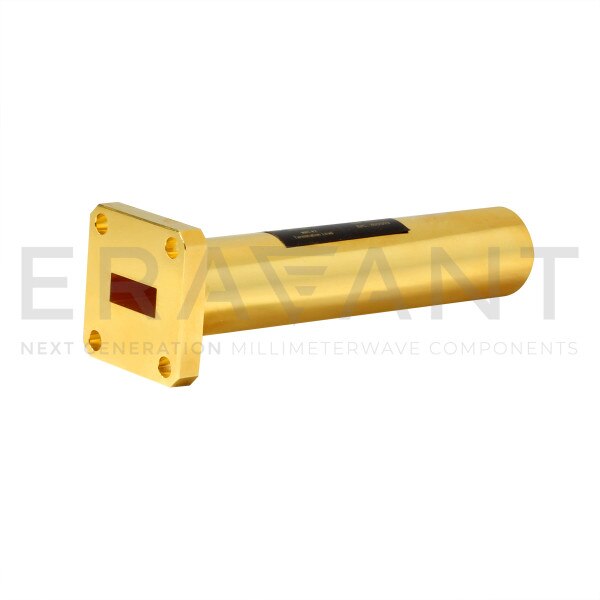

Q-Band Fixed Termination Load

33 to 50 GHz, 1.0 W Power Handling, WR-22 Waveguide
SKU:SWL-2230-S1-599
SWL-2230-S1-599 is a low power, Q-Band termination load that covers the frequency range of 33 to 50 GHz. The termination load exhibits a typical Return Loss of 34 dB. It is designed and manufactured to offer a good match for test lab and system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $490.00
25 - 49 $441.00
50 - 99 $396.90

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Power Handling, Watts1.0 W
Power Handling, dBm30 dBm
Return Loss34 dB
Load TypeFixed
Waveguide PortWR-22 Waveguide
