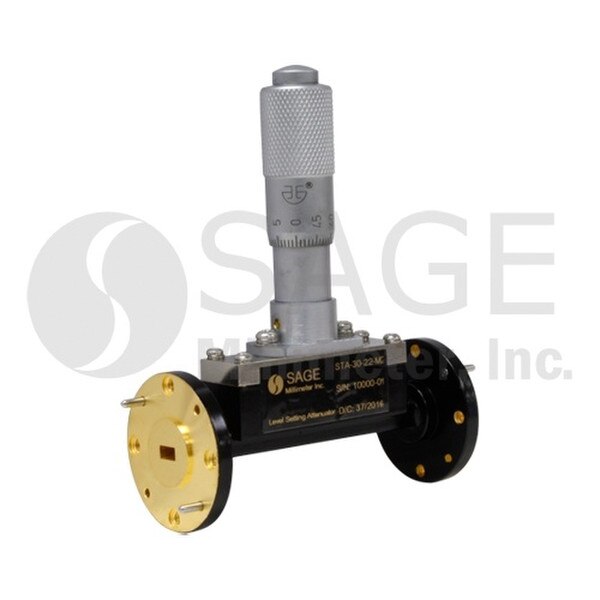

Q-Band Level Setting Attenuator

33 to 50 GHz, 0 to 30 dB, WR-22 Waveguide
SKU:STA-30-22-M2
Availability:1 Week ARO
STA-30-22-M2 is a Q band level setting attenuator that covers the frequency range of 33 to 50 GHz. The attenuator has a micrometer dial which allows for repeatable settings. The level setting attenuator is an ideal piece of equipment in waveguide systems where broadband level setting is required. The attenuator exhibits 0.3 dB typical insertion loss and up to 30 dB nominal attenuation.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$790.00
10 - 24$711.00
25 +$639.90

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Attenuation0 to 30 dB
Return Loss21 dB
Power Handling0.75 W
RF PortWR-22 Waveguide
Attenuator TypeLevel Setting
