WR-22 Waveguide Shim

33 to 50 GHz, 0.138" (L) Insertion Length, 138 Mils
SKU:SWI-22138-SB-599

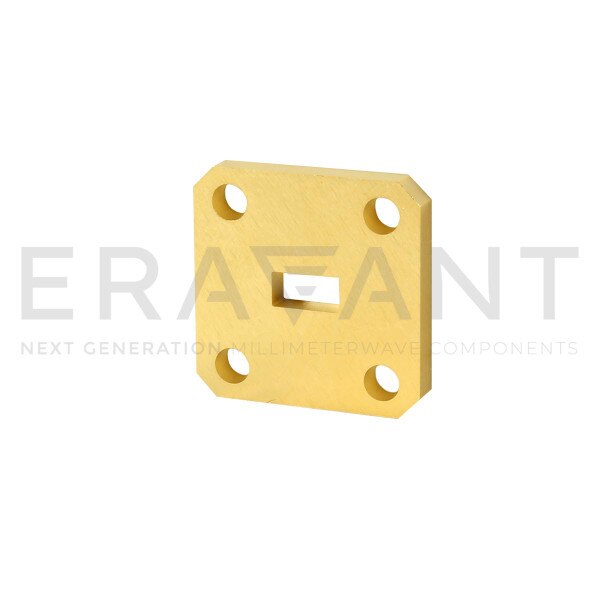

SWI-22138-SB-599 is a 0.138” thick, 3/8 wavelength, instrumentation grade Q Band waveguide spacer (shim) with WR-22 waveguide and UG-599/U style square flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 33 to 50 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $165.00
25 - 49 $148.50
50 - 99 $133.65

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Length0.138" (L)
Mils138
WaveguideWR-22 Waveguide
