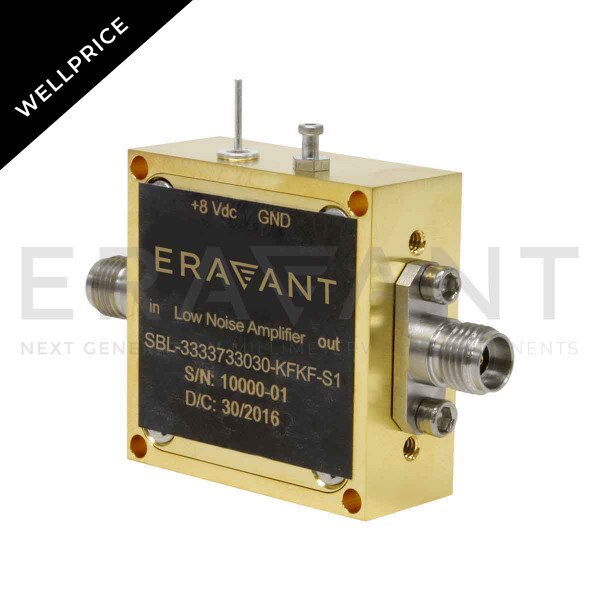

Ka-Band Low Noise Amplifier, Wellprice

33 to 37 GHz, 25 dB Gain, 3.0 dB Noise Figure, 2.92 mm (F)
SKU:SBL-3333733030-KFKF-S1-WP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Wellprice model that may not be offered in the future. Customers who anticipate long-term requirements should consider SBL-3333733030-KFKF-S1 as an alternative solution. Read more about Wellprice Products here.

SBL-3333733030-KFKF-S1-WP is a low noise amplifier with a typical small signal gain of 25 dB and a nominal noise figure of 3 dB across the frequency range of 33 to 37 GHz. The DC power requirement for the amplifier is +8 VDC/135 mA. The input and output port configurations are both female K connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency37 GHz
Gain25 dB
Noise Figure3.0 dB
P1dB+10 dBm
Input Return Loss7 dB
Output Return Loss7 dB
DC Bias+8 VDC/135 mA
RF Input/Output2.92 mm (F)
