Ka-Band Receiver

32 to 38 GHz, DC to 8 GHz IF, +5 dBm LO Power

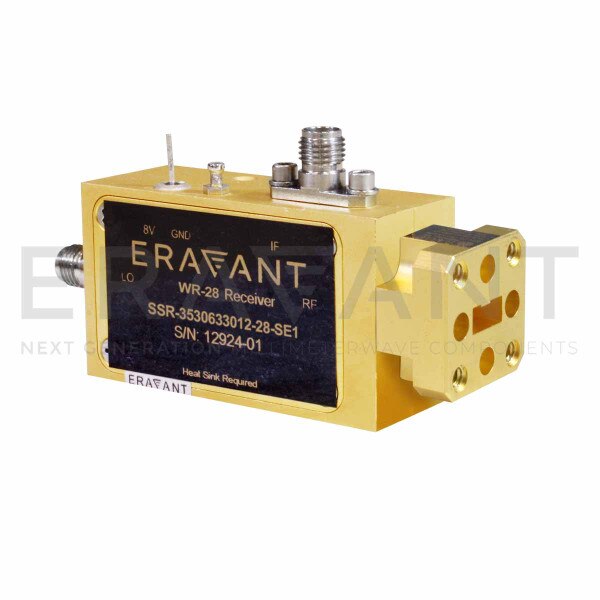

SSR-3530633012-28-SE1 is a WR-28 integrated receiver module for radar and 5G applications. The receiver has a typical conversion gain of 12 dB with a typical Noise Figure of 3 dB in the frequency range of 32 to 38 GHz. The required LO power is +5 dBm between frequencies of 7.5 and 10 GHz. The RF receive port is WR-28 Uni-Guide™ Waveguide with UG-599/U Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency32 GHz
Maximum RF Frequency38 GHz
Noise Figure3 dB
Gain12 dB
Minimum LO Frequency7.5 GHz
Maximum LO Frequency10 GHz
LO Input Power+5 dBm
Bias Voltage8 VDC
RF PortWR-28 Uni-Guide™ WG
