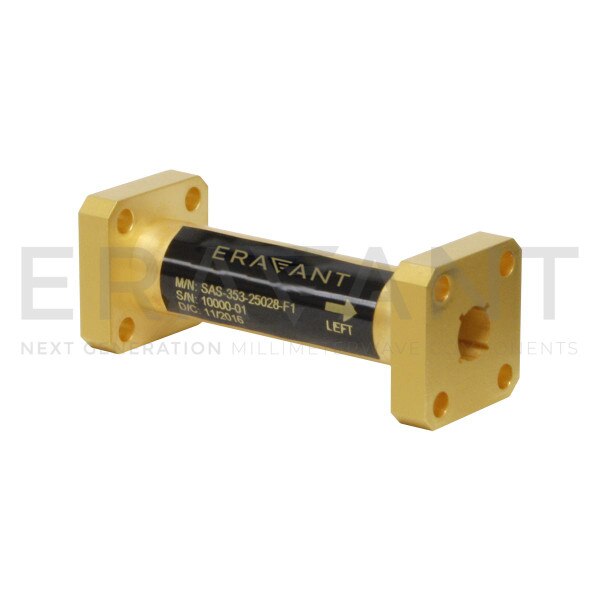

Ka-Band Linear to Circular Polarizer

32.4 to 37.6 GHz, 1.1 Axial Ratio, 0.250" Diameter Circular Waveguide
SKU:SAS-353-25028-F1
Availability:1 Week ARO
SAS-353-25028-F1 is a Ka band, linear to circular polarizer that operates at 35 GHz with a ±2.6 GHz bandwidth. The polarizer offers a typical insertion loss of 0.3 dB, a nominal axial ratio of 1.1, and a typical VSWR of 1.2:1. The polarizer is fixed and can be used for either right-handed or left-handed polarization based on the direction of the input signal. The polarizer is often combined with Eravant's rectangular to circular waveguide transition (SWT-28250-SB) and WR-28 conical horn antenna (SAC-2309-250-S2) for various system applications.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,650.00
5 - 9$1,485.00
10 +$1,336.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency35 GHz
Bandwidth±2.6 GHz
Insertion Loss0.3 dB
Axial Ratio1.1
Return Loss20 dB
Input/Output0.250" Diameter Circular Waveguide
