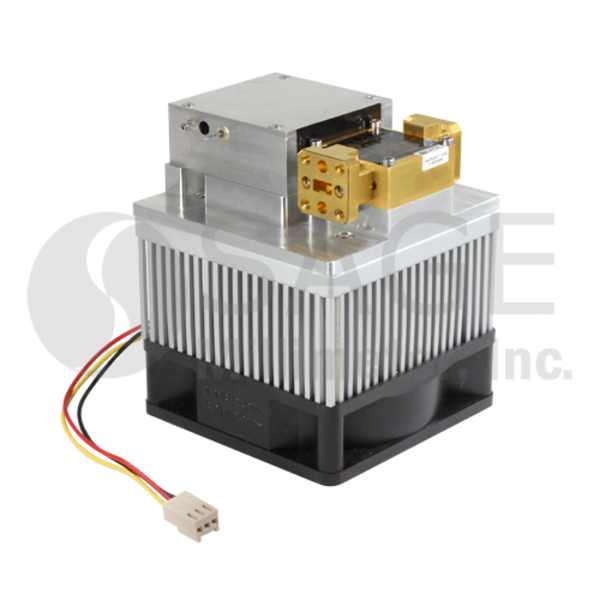

Ka-Band Power Amplifier, Limited Run

31 to 38 GHz, 40 dB Gain, +34 dBm P1dB, WR-28 Uni-Guide™ Waveguide
SKU:SBP-3133834034-2828-E1-HR
Availability:Product Discontinued
Select up to 4 products to compare.
Select up to 4 products to compare.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SBP-3133834034-2828-H1-HR as an alternative solution. Read more about Limited Run Products here.

SBP-3133834034-2828-E1-HR is a power amplifier with a typical small signal gain of 40 dB and a nominal P1dB of +34 dBm across the frequency range of 31 to 38 GHz. The DC power requirement for the amplifier is +8 VDC/2.4 A at quiescent and +8 VDC/4.0 A under RF drive. The RF connectors are WR-28 Uni-Guide™ waveguides. Other port configurations, such as K connectors, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency31 GHz
Maximum Frequency38 GHz
Gain40 dB
P1dB+34 dBm
Psat+35 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Voltage+8 VDC
DC Bias4000 mA
RF Input/OutputWR-28 Uni-Guide™ Waveguide
ConfigurationHeatsink Included
