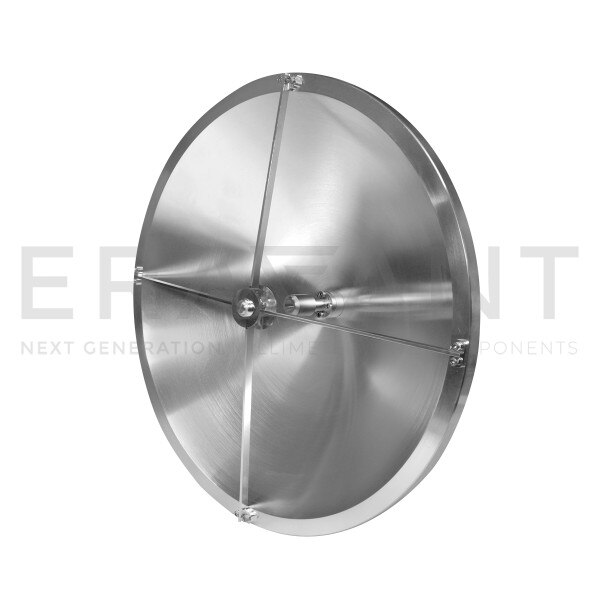

WR-28 Waveguide Monopulse Cassegrain Antenna

SAY-3433633135-28-S1-MP is a Monopulse Cassegrain antenna that operates from 34 to 36 GHz, and has a half power beamwidth of 3.5 degrees. The antenna offers a nominal gain of 31 dBi in the Sum Port, and 24 dBi in the H-Port and V-Port. The antenna has three WR-28 waveguides with UG-599/U compatible flanges, which are designated as Sum Port, V-Port, and H-Port. The antenna can support linear polarized waveforms and is designed and manufactured for indoor applications.
