K-Band Sector Rectangular Lens Antenna

31 dBi Gain, 23.7 to 24.3 GHz, WR-42 Waveguide
SKU:SAK-AL223263-42-C1

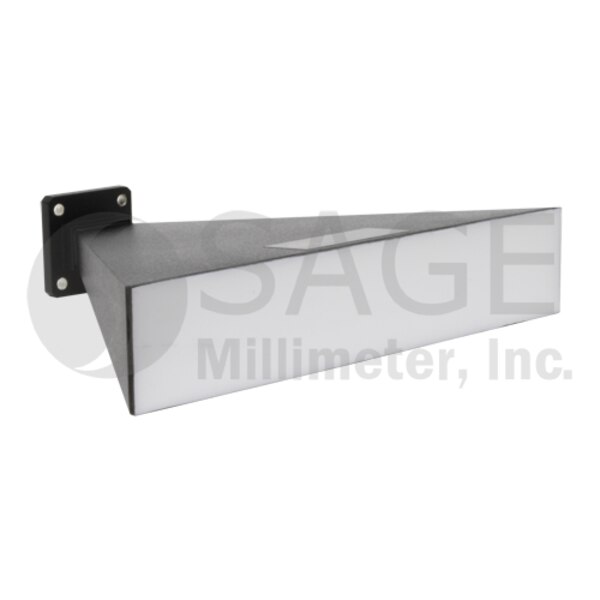

SAK-AL223263-42-C1 is a custom built, K-band sector rectangular lens antenna that delivers a nominal half-power beam width of 10.4 degrees vertically and 3 degrees horizontally and 31 dBi nominal gain at a center frequency of 24 GHz. The sidelobe level of the antenna is -15 dB or better across the frequency range of 23.7 to 24.3 GHz and the return loss is 15 dB or higher. The standard model is equipped with a WR-42 rectangular waveguide and a UG-595/U flange as its input port.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency23.7 GHz
Maximum Frequency24.3 GHz
Gain31 dBi
3 dB Beamwidth (E-Plane, H-Plane)10.4°, 3°
Return Loss15 dB
PolarizationLinear
Antenna PortWR-42 Waveguide
