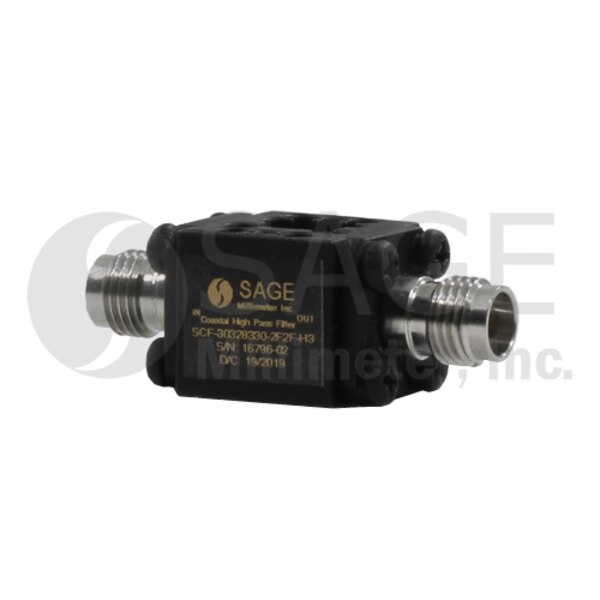

2.4 mm Coaxial Highpass Filter

30 to 50 GHz, 30 dB Rejection from DC to 28 GHz
SKU:SCF-30328330-2F2F-H3
Availability:6 to 8 Weeks ARO
SCF-30328330-2F2F-H3 is a coaxial high-pass filter to pass the frequency of 30 to 50 GHz. The typical insertion loss of the high-pass filter is 2.5 dB and passband ripple is ±0.5 dB. The rejection frequencies are 28 GHz or less and the typical rejection is 30 dB. The RF connectors of the the filter are 2.4 mm female connectors. The typical passband return loss of the filter is 10 dB.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 - 24$1,377.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency30 GHz
Maximum Passband Frequency50 GHz
Minimum Rejection FrequencyDC
Maximum Rejection Frequency28 GHz
Rejection30 dB
Insertion Loss2.5 dB
Return Loss10 dB Max
Impedance50 Ohms
Power Handling-
RF Ports2.4mm (F)
