Ka-Band Electrical Attenuator

30 to 40 GHz, 20 dB Attenuation, WR-28 Waveguide

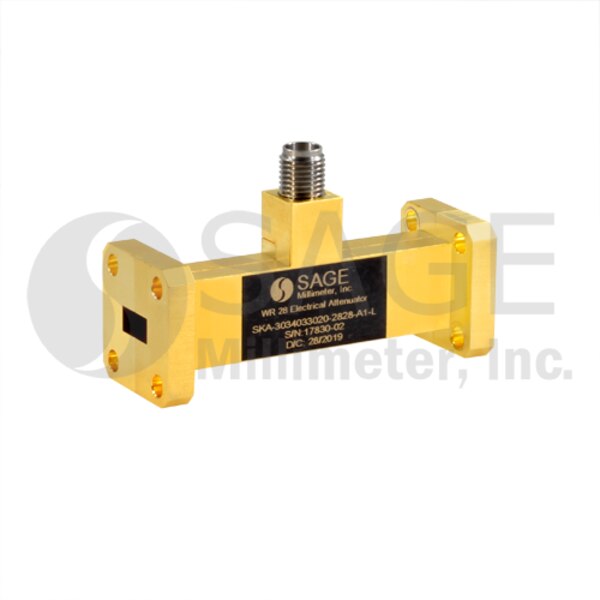

SKA-3034033020-2828-A1-L is a Ka Band, PIN diode based electrical attenuator. The attenuator exhibits 3.0 dB typical insertion loss and 20 dB nominal attenuation across the frequency range of 30 to 40 GHz. The control voltage of the standard model is 0 to -5 VDC with a typical current draw of 10 mA. However, the attenuator can also be configured with a positive control voltage from 0 to +5 VDC. The control speed of the attenuator can go up to 100 ns. The RF input and output ports are WR-28 waveguides with UG-599/U flanges, and a female SMA coaxial connector provides the control signal.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency30 GHz
Maximum Frequency40 GHz
Insertion Loss3.0 dB
Attenuation20 dB
Power Handling+20 dBm
DC Voltage Supply-5 V
DC Current10 mA
Switching Speed100 ns
RF PortWR-28 Waveguide
