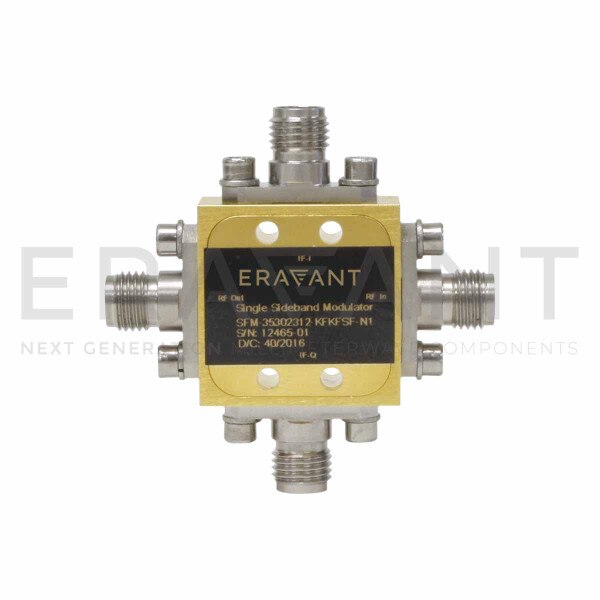

Ka-Band Single Sideband Modulator

30 to 40 GHz, 13 dB Conversion Loss, 20 dB Image Rejection
SKU:SFM-30340313-KFKFSF-N1-M
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFM-30340313-KFKFSF-N1-M is a Ka Band single side band modulator that covers the frequency range of 30 to 40 GHz. The typical conversion loss of the modulator is 13 dB with the quadrature IF driving signals of ±10 Vp-p/2 mA for both I and Q ports, typically. The typical input/output isolation and image rejection is 20 dB, respectively. In addition, the modulator can be used as an I/Q mixer or image rejection mixer by using one of the RF ports as LO port or adding the IF hybrid coupler when used as the image mixer. These products are offered under SFQ family.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,600.00
5 - 9 $1,440.00
10 - 24 $1,296.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Output RF Frequency Minimum30 GHz
Output RF Frequency Maximum40 GHz
IF Frequency MinimumDC
IF Frequency Maximum5 GHz
Conversion Loss13 dB
Image Rejection20 dB
