2.92 mm (F) Bias Tee

30 kHz to 40 GHz, 750 mA DC Current, 25 dB Isolation
SKU:SCV-000403302508-KFKF-U3
Availability:IN STOCKPlease contact us if you need more units than what is available online.

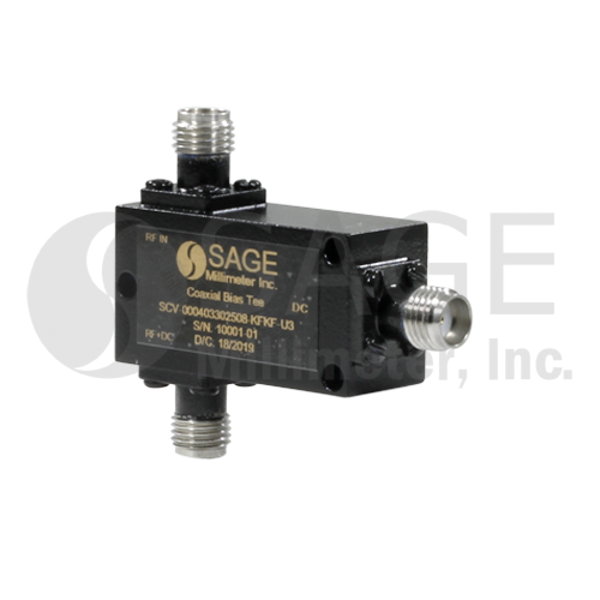

SCV-000403302508-KFKF-U3 is a bias tee that operates from 30 kHz to 40 GHz. The bias tee offers 3.0 dB typical insertion loss and 10 dB typical return loss. The bias tee can handle up to +25 VDC bias voltage and 750 mA current. The RF ports are equipped with 2.92 mm K(F) connectors. Other connector types are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$980.00
10 - 24$882.00
25 - 49$793.80

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency30 kHz
Maximum Frequency40 GHz
Insertion Loss3 dB
Return Loss10 dB
DC Voltage+25 VDC
DC Current750 mA
Power Handling1 W
Input Port2.92 mm Female
Output Port2.92 mm Female
DC PortSMA Female
