E-Band Lens Corrected Antenna

30 dBi Gain, 71 to 86 GHz, WR-12 Waveguide
SKU:SAL-7138633004-12-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

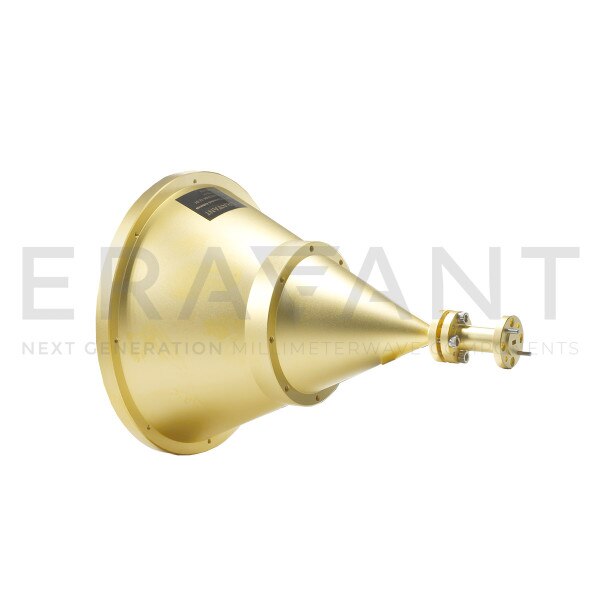

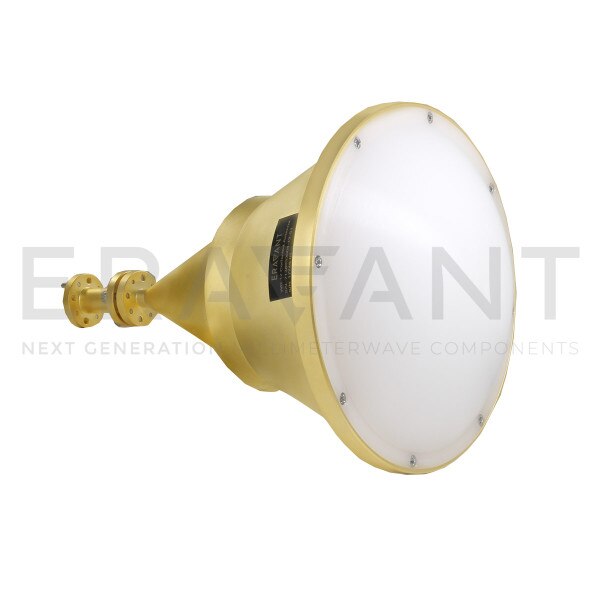

SAL-7138633004-12-S1 is an E-band lens corrected antenna that operates from 71 to 86 GHz. At a center frequency of 78.5 GHz, the antenna delivers 30 dBi nominal gain, 4.3 degrees typical half power beamwidth on the E-plane, and 5.3 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low side lobe levels. The lens corrected antenna is equipped with a WR-12 rectangular waveguide and UG-387/U flange as its input port. It supports linear polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency71 GHz
Maximum Frequency86 GHz
Gain30 dBi
3 dB Beamwidth (E-plane, H-plane)4.3°, 5.3°
Return Loss25 dB
PolarizationLinear
Antenna PortWR-12 Waveguide
