Ka-Band Omnidirectional Antenna, Weather Resistant

3 dBi Gain, 26.5 to 40 GHz, WR-28 Waveguide
SKU:SAO-2734030345-28-S1-WR
Availability:IN STOCKPlease contact us if you need more units than what is available online.

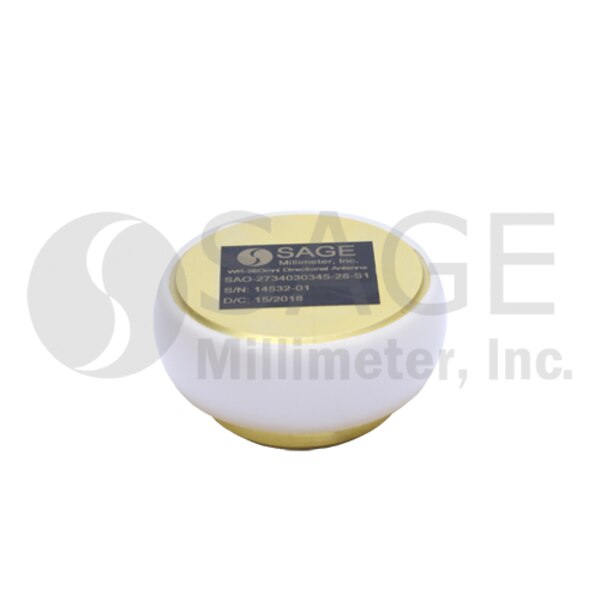

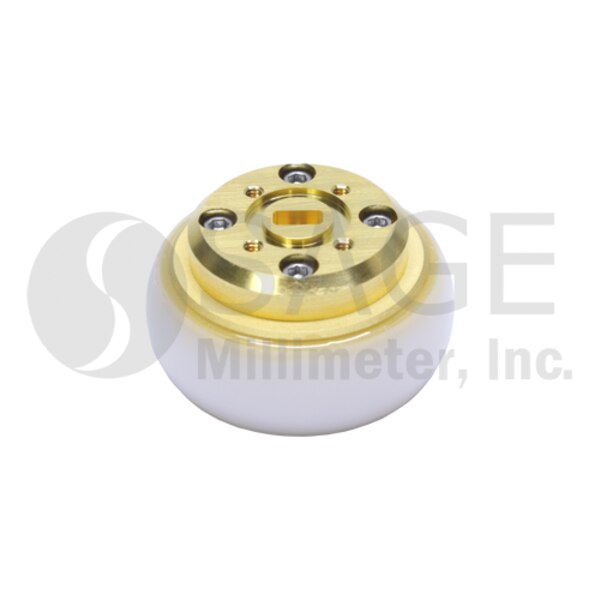

SAO-2734030345-28-S1-WR is a full band, Ka band omnidirectional antenna that covers the frequency range of 26.5 and 40 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 3 dBi typical gain and ±1 dB nominal gain flatness. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The RF port of the antenna is equipped with WR-28 waveguide with UG-599/U flange. The waveguide has an o-ring surrounding it to prevent small amounts water from entering the antenna. The version with 2.92 mm (F) interface is offered under model number, SAO-2734030345-KF-S1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain3 dBi
Azimuth360°
3 dB Beamwidth, Vertical45°
Return Loss10 dB
InputWR-28 Waveguide
