Ka-Band Omnidirectional Antenna

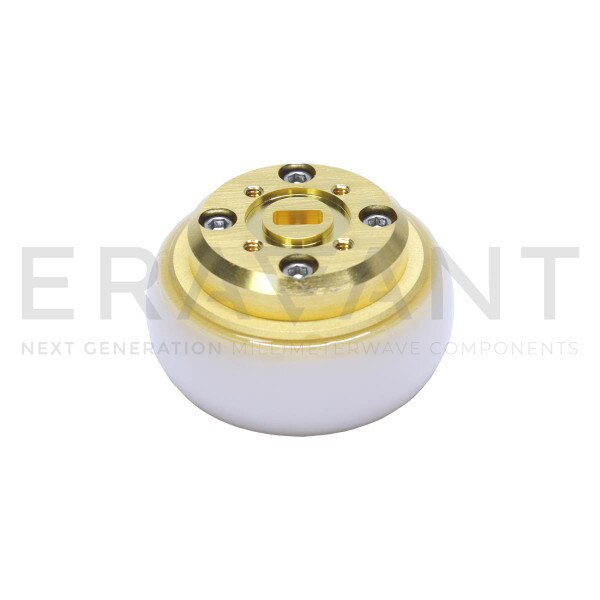

SAO-2434030345-28-S1 is a full band, Ka band omnidirectional antenna that covers the frequency range of 24 and 40 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 3 dBi typical gain and ±1 dB nominal gain flatness. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The RF port of the antenna is equipped with WR-28 waveguide with UG-599/U flange. The version with 2.92 mm (F) interface is offered under the model, SAO-2434030345-KF-E1and the version with 10 degree vertical beamwidth is offered under the model, SAO-2434230810-28-S1, respectively.
