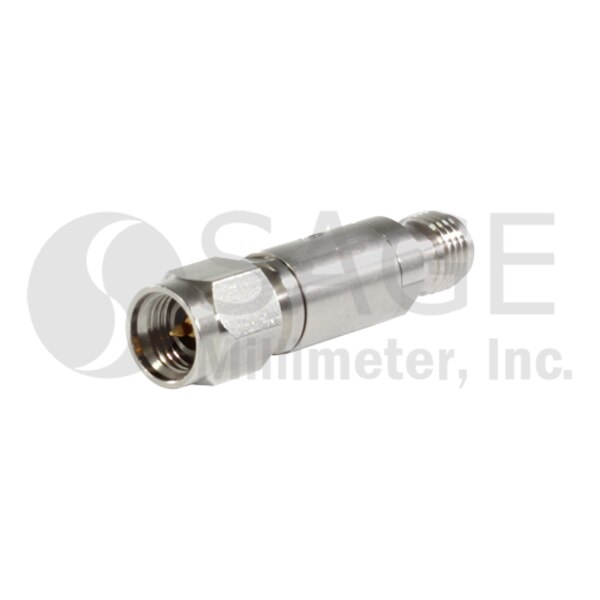

Coaxial Fixed Attenuator, Limited Run

3 dB Attenuation, 3.5 mm (M) to (F), DC to 26.5 GHz, 1 Watt
SKU:SCA-03-3M3F-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCA-03-3M3F-SD as an alternative solution. Read more about Limited Run Products here.

SCA-03-3M3F-S2 is a 3 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 26.5 GHz. The attenuator has a typical attenuation value of 3 dB across the frequency range. While the attenuator is designed and fabricated for full 3.5 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency26.5 GHz
Attenuation3 dB
Return Loss15 dB
Power Handling1 W
Connector 13.5 mm Male
Connector 23.5 mm Female
