Inner Coaxial DC Block, Limited Run

3.5 mm, 45 MHz to 26.5 GHz
SKU:SCB-050-3F3M-U2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model scheduled to be discontinued, so inventory will not be restocked. Read more about Limited Run Products here.

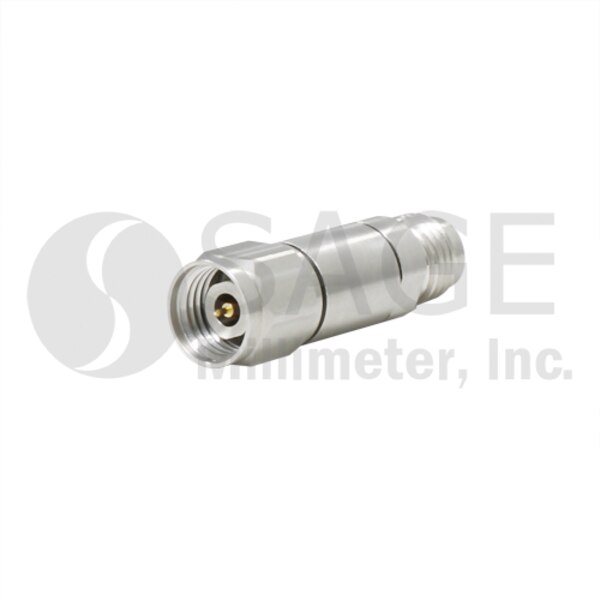

SCB-050-3F3M-U2 is a 3.5 mm coaxial DC block that prevents the flow of DC current in the frequency range of 45 MHz to 26.5 GHz. The DC block has a typical insertion loss of 1 dB, a nominal return loss of 17 dB, and a characteristic impedance of 50 ohms, respectively. It is manufactured with 3.5 mm male and female connectors for convenient circuit insertion. The breakdown voltage is +50 Volts.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $195.00
25 - 49 $175.50
50 - 99 $157.95

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency45 MHz
Maximum Frequency26.5 GHz
Return Loss17 dB
Impedance50 Ohms
Insertion Loss1 dB
Connector 13.5 mm Female
Connector 23.5 mm Male
