WR-22 Coaxial Highpass Filter

27 to 50 GHz, 40 dB Rejection from DC to 24 GHz
SKU:SCF-27324340-222F2F-H1
Availability:1 Week ARO

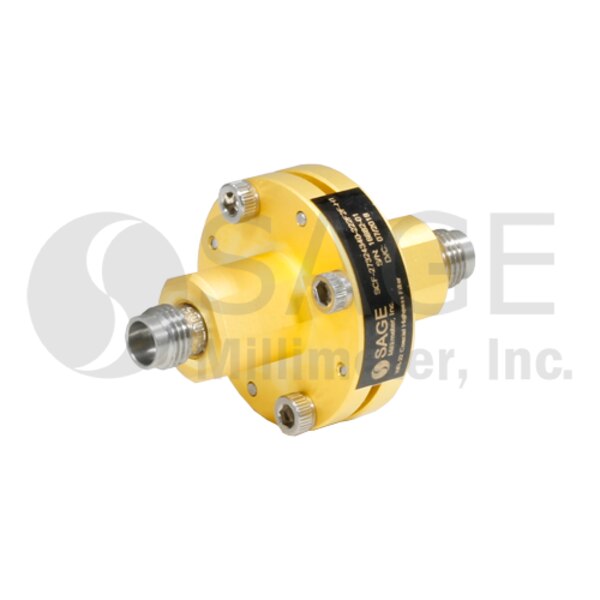

SCF-27324340-222F2F-H1 is a coaxial highpass filter with a passband frequency from 27 to 50 GHz. The filter rejects frequencies from DC to 24 GHz and provides a nominal insertion loss of 0.8 dB in its passband with low ripple. Typical rejection for this model is 40 dB. The RF ports offer female 2.4 mm connectors. However, the models with other connector type, such as male connector, are also available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,150.00
5 - 9$1,035.00
10 +$931.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband Frequency27 GHz
Maximum Passband Frequency50 GHz
Minimum Rejection FrequencyDC
Maximum Rejection Frequency24 GHz
Rejection40 dB
Insertion Loss0.8 dB
VSWR1.3
Impedance50 Ohms
Power Handling40 W
RF Ports2.4 mm (F)
