Broadband Power Amplifier

27 to 31 GHz, 45 dB Gain, +36 dBm P1dB, 2.92 mm (F)
SKU:SBP-2733134536-KFKF-EP
Availability:Contact Us for Quote

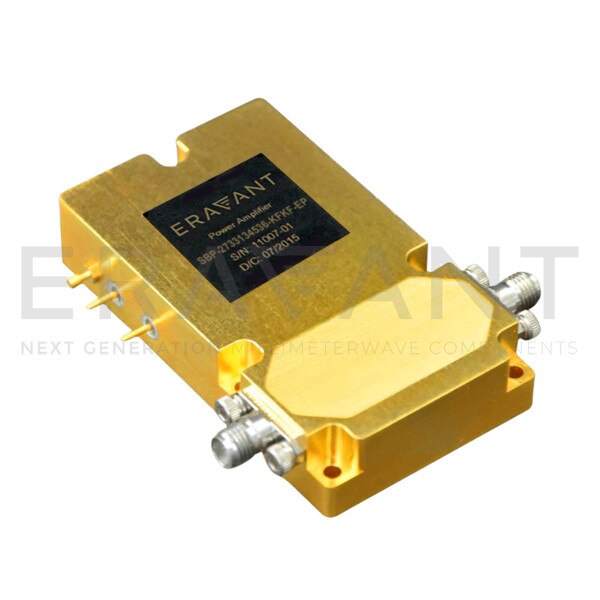

SBP-2733134536-KFKF-EP is a power amplifier with a typical small signal gain of 45 dB and a nominal P1dB of +36 dBm across the frequency range of 27 to 31 GHz. The DC power requirement for the amplifier is +12 VDC/2.7 A. The mechanical configurations is an inline structure with K(F) connector as its input port and output port. Other port configurations, such as K(M) connectors and WR-28 waveguides for either the input or output port, are also available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency27 GHz
Maximum Frequency31 GHz
Gain45 dB
P1dB+36 dBm
Psat+37 dBm
Pin0 dBm
Input Return Loss10 dB
Output Return Loss5 dB
DC Voltage+12 VDC
DC Bias2.7 A
RF Input/Output2.92 mm (F)
ConfigurationStandard
