Ka-Band Power Amplifier with Uni-Guide™

27 to 31 GHz, 40 dB Gain, +38 dBm Psat, 2.92 mm (F), WR-28 Waveguide

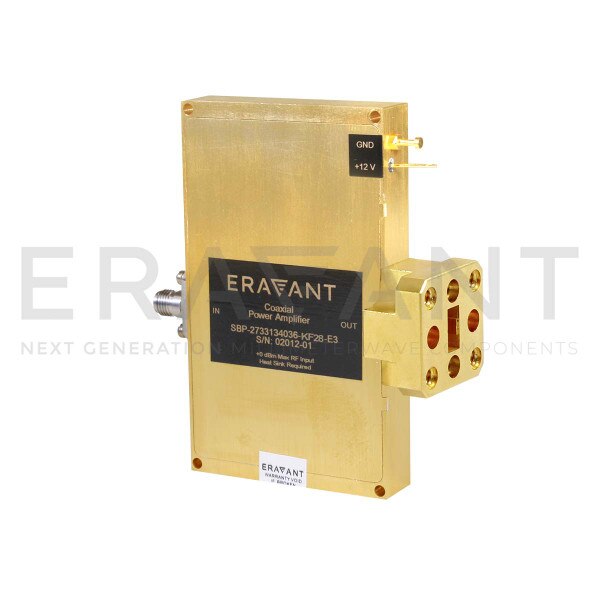

SBP-2733134036-KF28-E3 is a power amplifier with a typical small signal gain of 40 dB and a nominal Psat of +38 dBm across the frequency range of 27 to 31 GHz. The DC power requirement for the amplifier is +12 VDC/3 A. The RF input is a 2.92 mm female connector and the output is a WR-28 Uni-Guide™ waveguide. Other port configurations, such as K connectors and WR-28 waveguides for either the input or output port, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency27 GHz
Maximum Frequency31 GHz
Gain40 dB
P1dB+36 dBm
Psat+38 dBm
Input Return Loss9 dB
Output Return Loss9 dB
DC Voltage+12 VDC
DC Bias3000 mA
RF Input/Output2.92 mm (F)/WR-28 Uni-Guide™ Waveguide
