WR-90 Slotted Waveguide Array Antenna

27 dBi Gain, 9.6 to 9.8 GHz, X-Band, Weather Resistant
SKU:SAW-9629822716-90-L2-WR
Availability:6 to 8 Weeks ARO

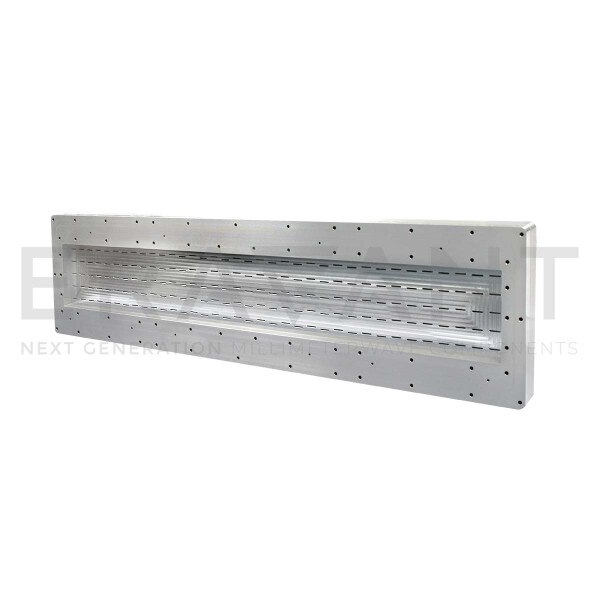

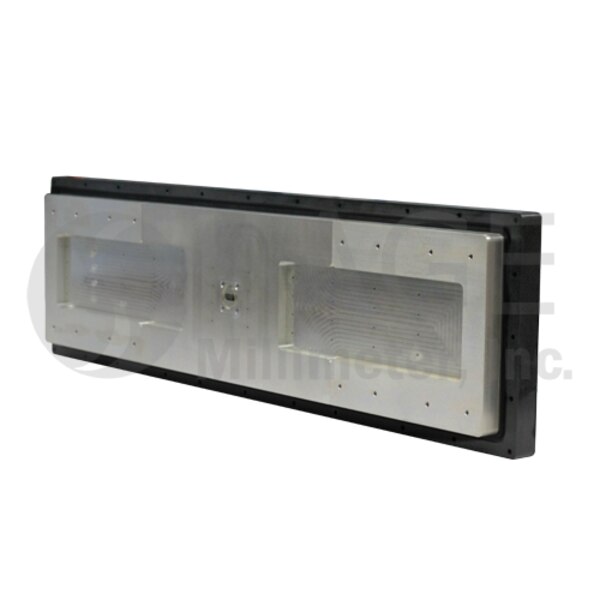

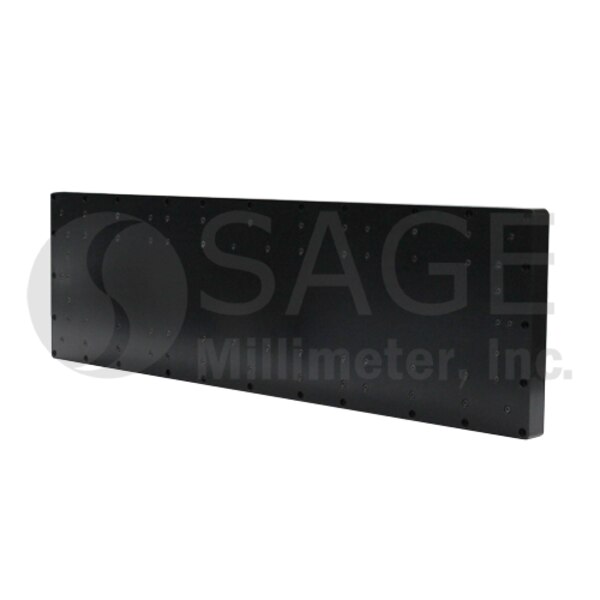

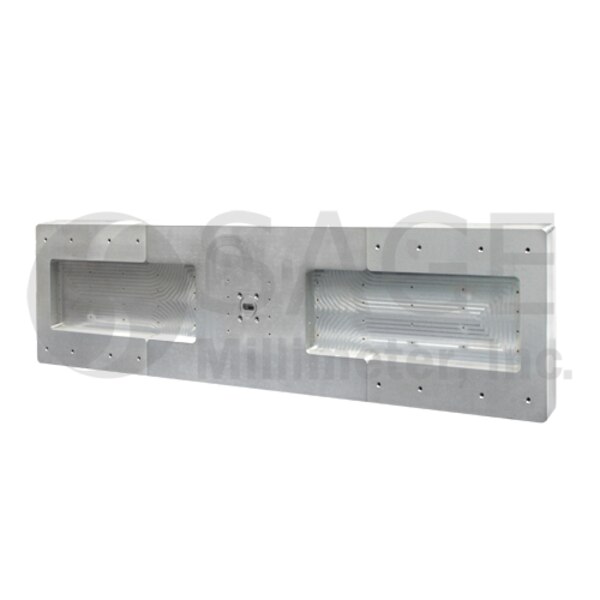

SAW-9629822716-90-L2-WR is a weather resistant X-band slotted waveguide array antenna that operates from 9.6 to 9.8 GHz. The antenna offers 27 dBi nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 2 degrees on the H-plane, respectively. Compared to microstrip antennas, the slotted waveguide array antenna offers higher aperture efficiency. The antenna also offers typical side lobes of -15 dB or better and supports linear, vertical polarized waveforms. The input port of this antenna is WR-90 Waveguide.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$15,150.00
2 - 2$14,392.50
3 +$13,672.88

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency9.6 GHz
Maximum Frequency9.8 GHz
Gain27 dBi
3 dB Beamwidth, Vertical16°
3 dB Beamwidth, Horizontal
Side Lobe Level-15 dB
Return Loss13 dB
PolarizationLinear, Vertical
Antenna PortWR-90 Waveguide
