Ka-Band Spot-Focusing Lens Antenna

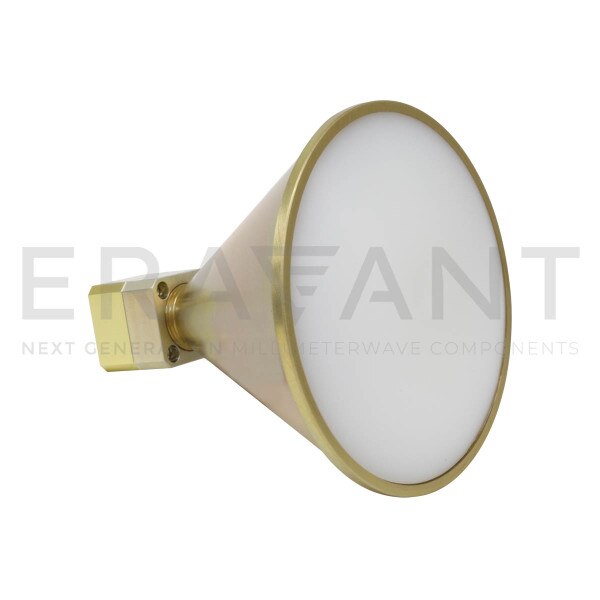

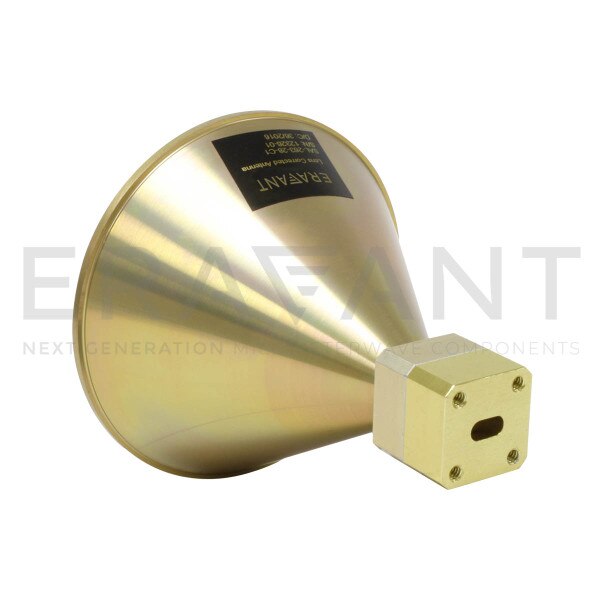

SAQ-263079-28-S1 is a Ka-band spot-focusing lens antenna that delivers a 3 dB spot size of 1.32" at a focal length of 7.87". The antenna employs a low loss lens to offer excellent aperture efficiency at 26 GHz. The lens antenna is equipped with a WR-28 waveguide and UG-599/U flange as its input port. It supports linear polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
