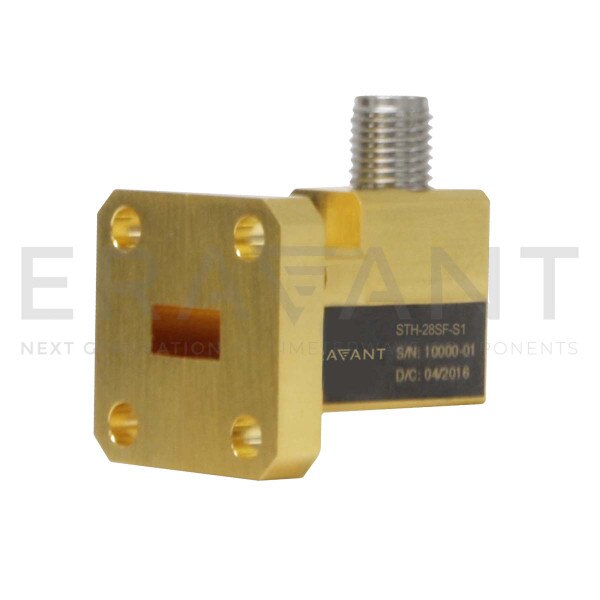

Ka-Band Spectrum Analyzer Harmonic Mixer

26.5 to 40 GHz, WR-28 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STH-28SF-S1 is a Ka Band harmonic mixer employing single diode and broadband circuitry to deliver low conversion loss and continuous frequency coverage for full waveguide band operations covering the frequency range of 26.5 to 40 GHz. The mixer extends the operation frequency of test instruments like the spectrum analyzer and frequency counter from 18 GHz or below to full Ka band operations. Unlike the balanced harmonic mixer, model number SFH-28SFSF-A3, the spectrum analyzer mixer does not have a built-in frequency diplexer. Therefore, their LO and IF ports are combined to a common coaxial port where their LO and IF signals are shared. This feature provides a convenient connection ability when used with the spectrum analyzer or frequency counter models that have a built-in diplexer, i.e., combined LO and IF port, such as the models offered by Advantest, Anritsu, Rohde & Schwarz, some Keysight models and Tektronix and National Instruments/Phase Matrix (EIP).
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
IF Minimum FrequencyDC
IF Maximum Frequency4 GHz
LO Power+13 dBm
RF Input Power-20 dBm
RF PortWR-28 Waveguide
IF and LO PortsSMA (F)
