Ka-Band Up-Converter

26.5 to 40 GHz RF Output, DC to 13.5 GHz IF Input, WR-28 Waveguide

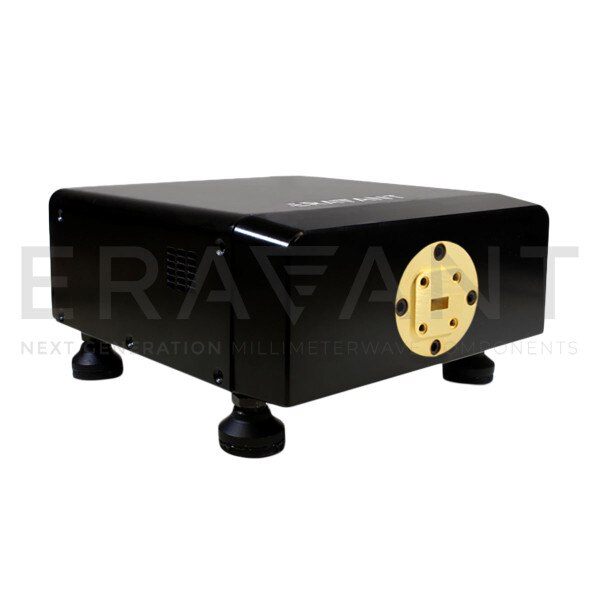

STV-00-28-S1 is a Ka-Band up-converter that converts IF signals from a frequency range of DC to 13.5 GHz with -5 dBm power to the millimeterwave frequency at 26.5 to 40.0 GHz. The up-converter requires 13 to 20 GHz at 0 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeterwave testing purposes.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency26.5 GHz
Maximum RF Frequency40 GHz
Minimum IF FrequencyDC
Maximum IF Frequency13.5 GHz
Minimum LO Frequency13 GHz
Maximum LO Frequency20 GHz
RF PortWR-28 Waveguide
