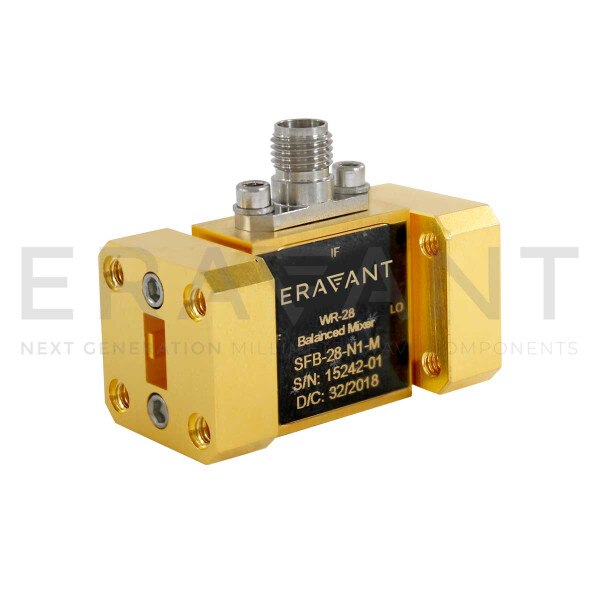

Ka-Band Balanced Mixer

26.5 to 40 GHz, DC to 13 GHz IF, +15 dBm LO Power, +10 dBm Input P1dB, WR-28 Waveguide
SKU:SFB-28-N1-M
Availability:1 Week ARO
SFB-28-N1-M is a Ka Band balanced mixer that utilizes high performance pHEMT based GaAs MMIC to offer superior RF performance. The mixer supports the full waveguide band operation for both LO and RF frequencies from 26.5 to 40 GHz with an IF output from DC to 13.0 GHz. The mixer offers a conversion loss of 12 dB typical, a high LO to RF port isolation of 30 dB, a LO to IF port isolation of 25 dB and an RF to IF port isolation of 25 dB.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,650.00
5 - 9$1,485.00
10 +$1,336.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum RF Frequency26.5 GHz
Maximum RF Frequency40 GHz
Minimum LO Frequency26.5 GHz
Maximum LO Frequency40 GHz
Minimum IF FrequencyDC
Maximum IF Frequency13 GHz
LO Pumping Power+15 dBm
RF PortWR-28 Waveguide
