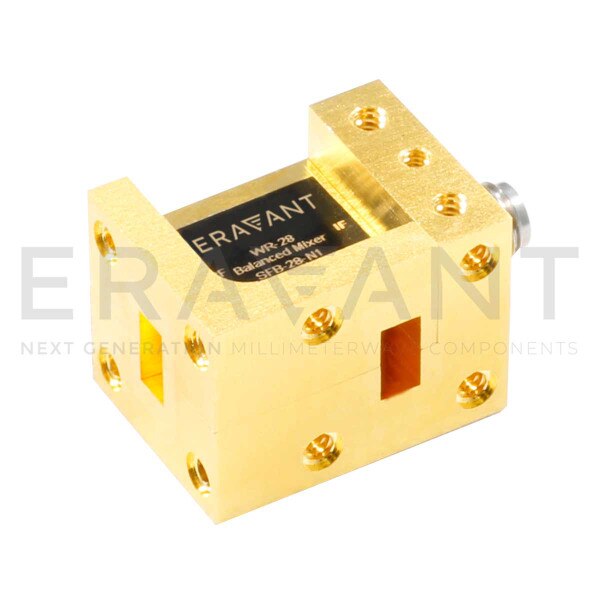

Ka-Band Balanced Mixer

26.5 to 40 GHz, DC to 13.5 GHz IF, +13 dBm LO Power, WR-28 Waveguide
SKU:SFB-28-N1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFB-28-N1 is a Ka-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The mixer supports the full waveguide band operation for both LO and RF frequencies from 26.5 to 40 GHz with an extremely broad IF output from DC to 13.5 GHz. The mixer offers a conversion loss of 7.5 dB typical and a high RF to LO port isolation of 30 dB.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,600.00
5 - 9$1,440.00
10 - 24$1,296.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency26.5 GHz
Maximum RF Frequency40 GHz
Minimum LO Frequency26.5 GHz
Maximum LO Frequency40 GHz
Minimum IF FrequencyDC
Maximum IF Frequency13.5 GHz
LO Pumping Power+13 dBm
RF PortWR-28 Waveguide
