Ka-Band DPDT Motorized Switch, Limited Run

26.5 to 40 GHz, 60 dB Isolation, WR-28 Waveguide
SKU:SWJ-28-TS
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWJ-28-T1 as an alternative solution. Read more about Limited Run Products here.

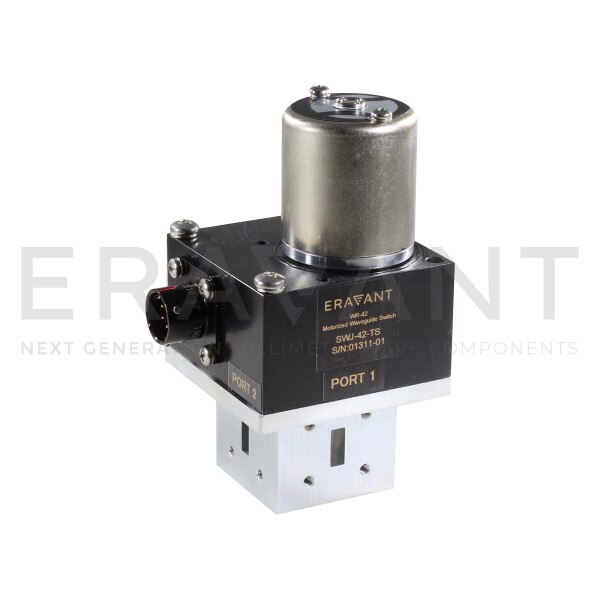

SWJ-28-TS is a WR-28 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 26.5 to 40 GHz. The switch has four ports and the switching is E plane. The switch is a bi-directional device which allows each port to be switched on and off between the adjacent ports. The insertion loss of the switch is 0.3 dB typical and the isolation is 60 dB typical. The switch has WR-28 waveguides with UG-599/U flanges. The bias and control signal connector is MS3112E-10-6P type.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,300.00
3 - 4 $4,085.00
5 - 9 $3,880.75

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss0.3 dB
Isolation60 dB
Return Loss23 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-28 Waveguide
