Ka-Band Low Noise Amplifier

26.5 to 40 GHz, 40 dB Gain, 2.5 dB Noise Figure, 2.92 mm (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

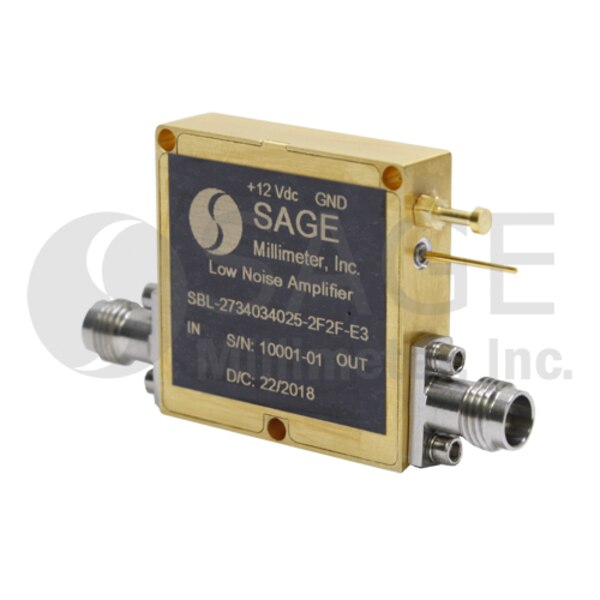

SBL-2734034025-KFKF-E3 is a low noise amplifier with a typical small signal gain of 40 dB and a nominal noise figure of 2.5 dB across the frequency range of 26.5 GHz to 40 GHz. The DC power requirement for the amplifier is +12 VDC/200 mA. The input and output port configurations are both K (F) connectors. Other port configurations, such as 2.4 mm (F) connectors are available under model number SBL-2734034025-2F2F-E3.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,550.00
3 - 4 $2,422.50
5 - 9 $2,301.38

Bulk Availability

1 - 6In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain40 dB
Noise Figure2.5 dB
P1dB+10 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+12 VDC/200 mA
RF Input/Output2.92 mm (F)
