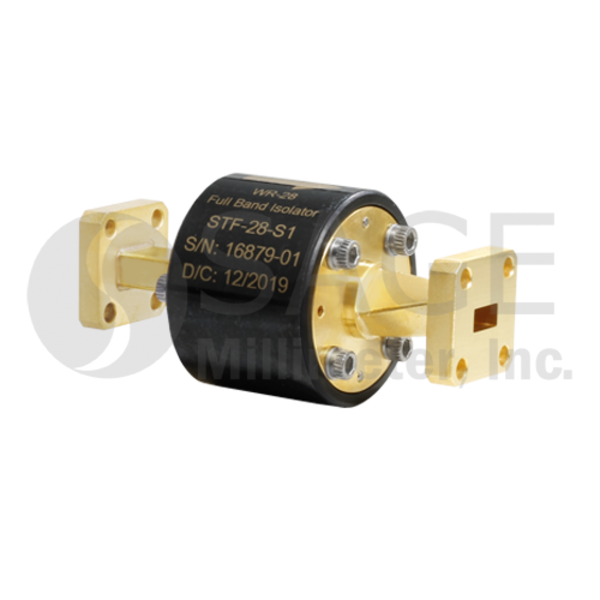

Ka-Band Faraday Isolator

26.5 to 40 GHz, 30 dB Isolation, 1.2 dB Insertion Loss, WR-28 Waveguide
SKU:STF-28-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STF-28-S1 is a full band Faraday isolator that operates from 26.5 to 40 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The Faraday isolator offers 30 dB typical isolation and 1.2 dB nominal insertion loss with good flatness. The input and output ports are WR-28 waveguides with UG-599/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss1.2 dB
Isolation30 dB
Return Loss14 dB
Power Handling1.8 W
RF PortWR-28 Waveguide
ConfigurationStandard
