8-Way In-line Power Divider

26.5 to 40 GHz, 20 dB Adjacent Port Isolation, WR-28 Waveguide, Ka-Band
SKU:SWP-27340308-28-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

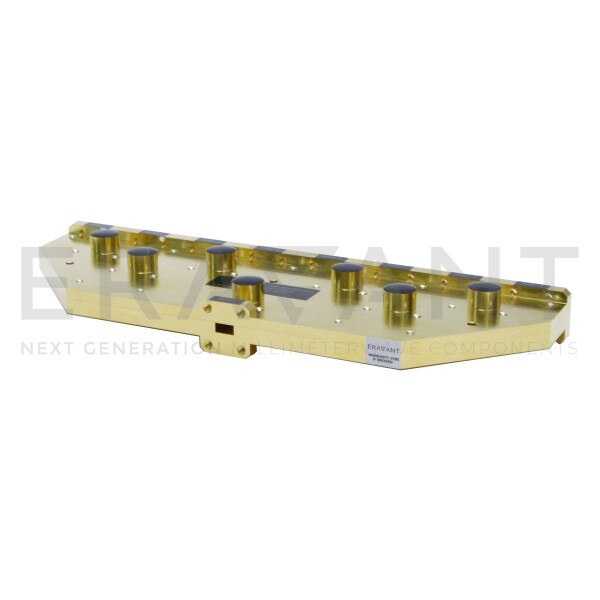

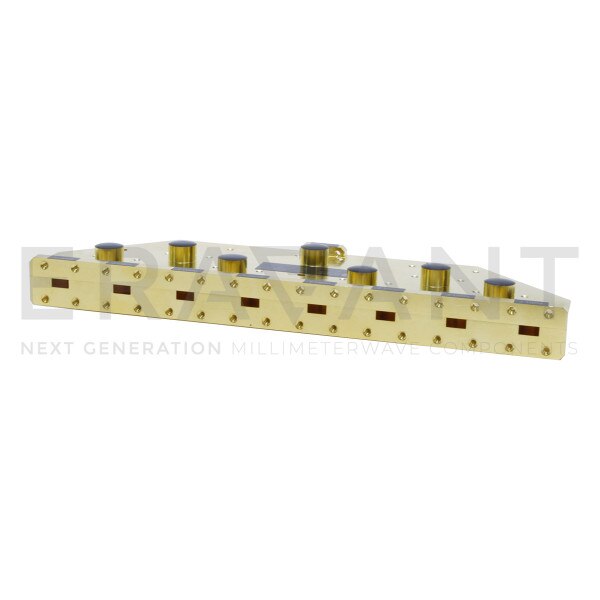

SWP-27340308-28-E1 is a Ka band, 8-way in-line waveguide power divider that operates across the frequency range of 26.5 to 40 GHz. The power divider offers a typical insertion loss of 1.2 dB at each output port and a typical isolation of 20 dB and 30 dB between adjacent and non-adjacent ports respectively. The ports are well balanced and in phase for either power dividing or power combining applications across the specified frequency range. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,150.00
3 - 4 $2,992.50
5 - 9 $2,842.88

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss1.2 dB
Port Isolation20 dB
Amplitude Imbalance±0.5 dB
Return Loss15 dB
Power Division8 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-28 WG
