High Power Full Band Junction Circulator

26.5 to 40 GHz, 15 dB Isolation, WR-28 Waveguide, Ka-Band
SKU:SNF-28-C5
Availability:IN STOCKPlease contact us if you need more units than what is available online.

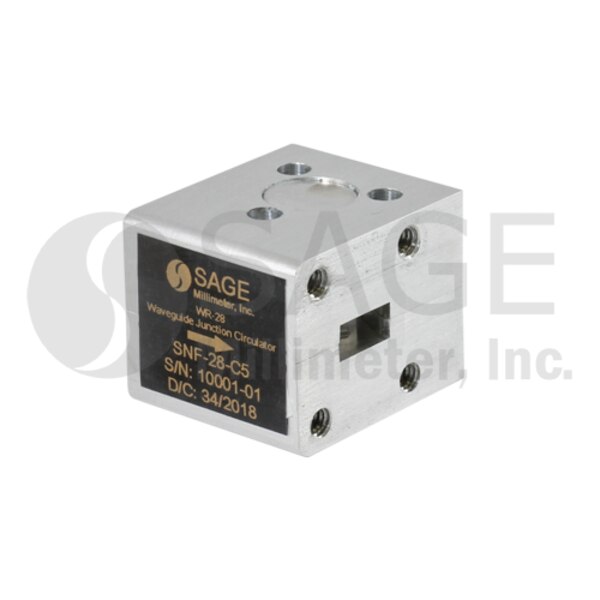

SNF-28-C5 is a Ka band, waveguide junction circulator that covers the frequency range of 26.5 to 40 GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.4 dB typical with good flatness. Compared to a Faraday isolator, it offers a much shorter insertion length for system integration. The isolator also offers a moderate isolation of 15 dB and a forward power handling of 20 Watts. The input and output ports are WR-28 waveguides with UG-599/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$1,050.00
10 - 24$945.00
25 - 49$850.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss0.4 dB
Isolation15 dB
Return Loss15 dB
Forward Power Handling20 W
Reverse Power Handling-
RF PortWR-28 Waveguide
Device TypeCirculator
